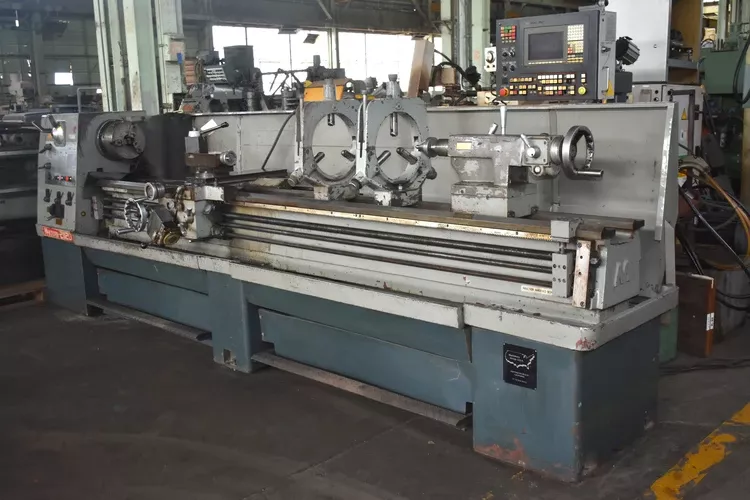

STX Engine Lathe 1600 rpm MAXTURN PHL21120

Swing over bed: 21 in
Swing through gap: 30 in
Swing over cross slide: 14 in
Distance between centers: 120 in
Cross slide travel: 11 in
Spindle bore: 3.125 in
Spindle speed range: 20–1600 rpm
Number of spindle speeds: 16
Spindle motor power: 12.5 hp
Carriage longitudinal feed range: 0.002–0.032 ipr
Cross slide feed range: 0.001–0.016 ipr
Thread range: 2–72 TPI
Metric pitch range: 0.4–14 mm
Module range: 0.3–3.5 MOD
Diametral pitch range: 8–44 DP
Tailstock taper: MT5
Overall length: 11 ft 10 in
Overall depth: 5 ft
Overall height: 4 ft 6 in
Machine weight: 5200 lb

Features / equipment
Geared headstock
Gap bed
Taper attachment
Inch threading
Metric threading
Full-length lead screw
3-jaw chuck
Steady rest
Second steady rest
Quick-change tool post
Hard ways
Threading dial
Coolant system
Full-length coolant chip pan
