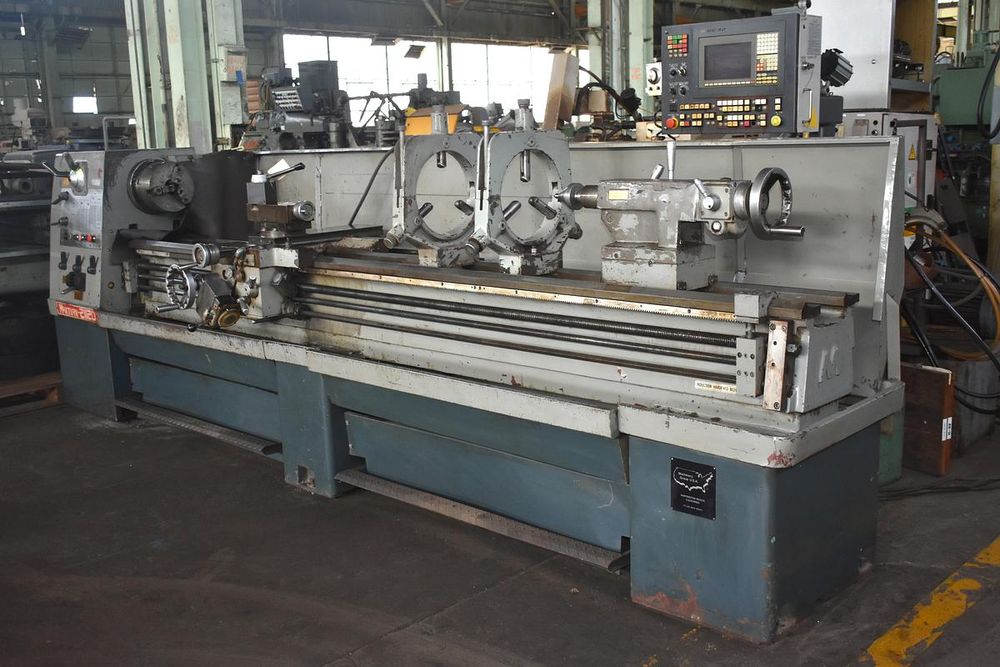

STX Engine Lathe 1600 RPM STX MAXTURN PHL21120

Ref : 2730115-3-CP
Condition : Used
Manufacturer : STX
Type : Engine Lathe
Spindle Speed : 1600 RPM
Model : STX MAXTURN PHL21120
Year(s) : -
Quantity : 1
Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

STX MAXTURN PHL21120

Hole Through Spindle: 3.125"
Swing Over Bed Ways, Rated: 21"
Swing Through Gap: 30"
Swing Over Cross-Slide: 14"
Distance Between Centers: 120"
Cross-Slide Cross-Feed Travel: 11"
Tailstock Spindle Taper: #5 MT
Spindle Speeds (16): 20 to 1600 RPM
Carriage Longitudinal Feeds: 0.002 to 0.032 IPR
Cross-Slide Cross Feeds: 0.001 to 0.016 IPR
Thread Changes Range: 2 to 72 TPI
Metric Pitches Range: 0.4 to 14 MM
Metric Modules: 0.3 to 3.5 MOD
Diametral Pitches: 8 to 44 DP
Spindle Drive Motor: 12.5 HP
Overall Dimensions L x D: 11'10" x 5'
Overall Height: 4'6"
Approximate Weight: 5200 LBS
Taper Attachment
Threading Inch-Metric Full-Length Lead Screw
10" 3-Jaw Chuck with Jaws
Two Steady Rests
Quick Change Tool Post
Hard Ways
Threading Dial
Full Length Coolant-Chip Pan
Coolant System
