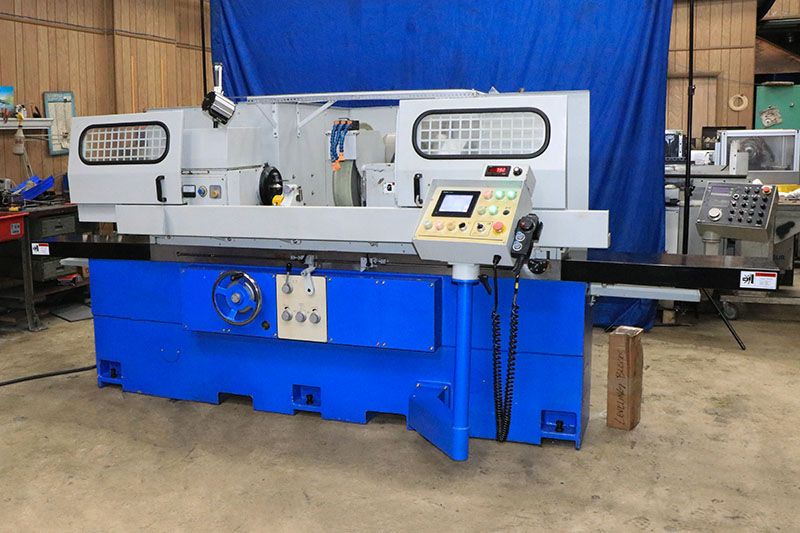

Supertec G38P-100NC

Distance Between Centers: 40"
Swing Over Table: 15.7"
Max Grinding Diameter: 14"
Max Load Between Centers: 330 lbs
Wheelhead Auto Incremental Infeed (NC): 0.0001" – 0.0999"
Wheelhead Handwheel per Revolution: By MPG
Wheelhead Top Slide Travel: 7"
Wheelhead Total Infeed: 9.6"
Wheelhead Swiveling Angle R&L: 30 Degrees
Wheelhead Automatic Rapid Travel: 1.75"
Grinding Wheel Diameter x Width x Bore: 16" x 2" x 5"
Grinding Wheel Speed: 1,650 rpm
Table Swiveling Angle R&L: 7 Degrees
Table Traverse Speed (Infinitely Variable): 1.2" – 275"/min
Table Handwheel per Revolution: 0.39"
Workhead Swiveling Angle R&L: 90 Degrees
Workhead Center Taper: MT4
Workhead Spindle Speed (Infinitely Variable): 30 – 350 rpm
Tailstock Center Taper: MT4 (Option MT5)
Tailstock Quill Travel: 1"
Wheel Spindle Motor: 7.5 HP
Workhead Motor: 2 HP
Hydraulic Pump Motor: 2 HP
Coolant Pump Motor: 0.25 HP
Machine Weight: 10,500 lbs
Mitsubishi PLC Control
Ball Screw & AC Servo Motor on Infeed
Manual Pulse Generator (MPG)
Turcite on Ways for Wheelhead Slide
Infinitely Variable Workhead Spindle Speeds with RPM Display
Workhead Spindle Dual "Live & Dead"
Universal Grinder, Wheelhead & Workhead Swivel
Hydraulic Table Traverse & Manual Handwheel
Automatic Lubrication System
Coolant System with Standard Tank and Pump
Separate Oil Cooler for Hydraulic Oil Thermal Stability
Center in Workhead
2-Point Steady Rest
Table Mounted Dresser
