TOS Varnsdorf WHN 13 CNC 130 mm 1500 RPM

Ref : 2539673-3-MT
Condition : Used
Manufacturer : TOS Varnsdorf
Model : WHN 13 CNC
Spindle Size : 130 mm
Spindle Speed : 1500 RPM
Year(s) : -
Quantity : 1
Location : Seller or machines location:
EUROPE (Western and Northern)

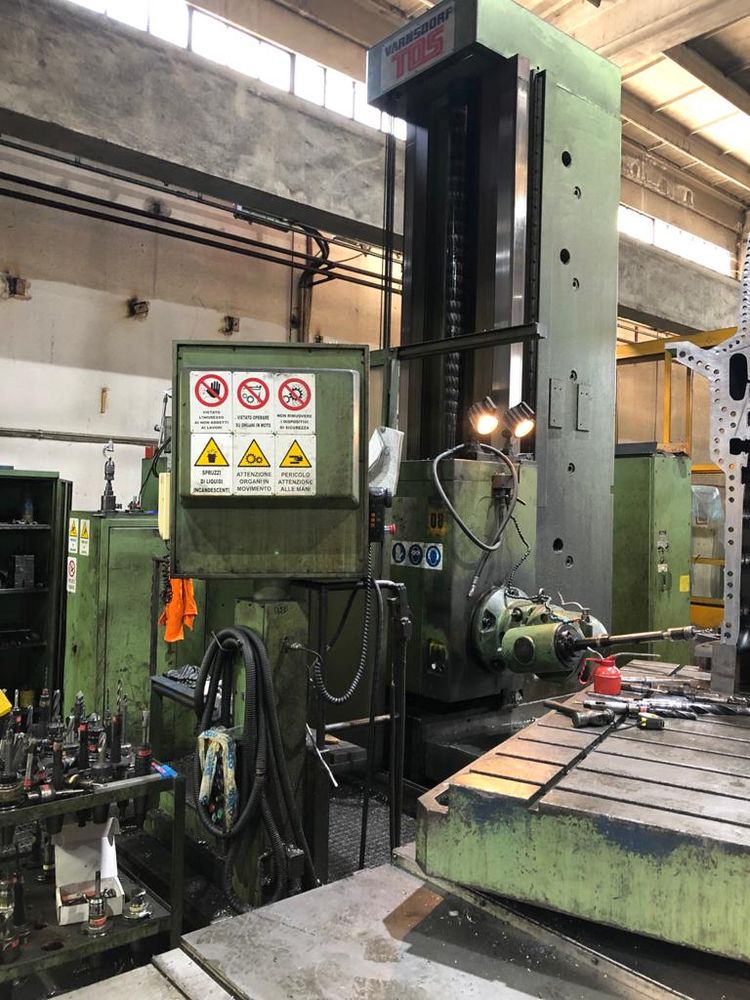

TOS VARNSDORF WHN 13 CNC

CNC HEIDENHAIN TNC 426
STROKES:
-Axis X stroke mm 3500
-Axis Y stroke mm 2000
-Axis Z stroke mm 1250
-Axis W stroke mm 800

TABLE:
-Table dimensions mm 1800x2200
-Maximum table load Kg 12.000

SPINDLE:
-Spindle diameter 130 mm
-Spindle cone 50 mm - DSN 22 0430
-Spindle speed 2 mechanical ranges with max revolutions programmable from rpm 10 to 355 and from rpm 356 to 1500
Possibility of variation in percentage (at 1%) during the machine running from 15 to 120% but in the low range from 5 to 400 rpm and in the high range from 175 to 1600 rpm.
-Max spindle torsion torque (in the range from 10 to 105 rpm) Nm 3379
- Spindle motor power kW 37
DIMENSIONS AND MACHINE WEIGHT:
-Max length and width 7045x6910 mm
-Surface covered on the floor 49 m2
-Height max 4995 mm
-Total weight Kg 34500
EQUIPPED WITH:
-Bi-rotary head
-Cabin operator
-Chip conveyor
-Systema di misura diretta con righe ottiche
