Toshiba BTD-200QF Quill diameter 7.9" 3000 RPM

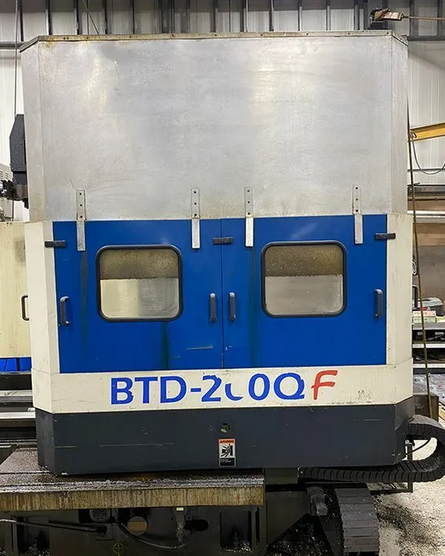

TOSHIBA BTD-200QF
1998

Table cross travel (X axis) 59.1"
Vertical headstock travel (Y axis) 47.2"
Longitudinal table travel (Z axis) 27.6"
Spindle/quill travel (W axis) 15.7"
Distance spindle to table center 0–39.4"
Distance spindle gage to table center 17.7"–45.3"
Table size 39.4" x 39.4"
Table load capacity 6,600 lbs
Table indexing .001°
Spindle diameter 4.3"
Quill diameter 7.9"
Spindle speed range 25–3000 RPM
Spindle taper CAT-50
Rapid traverse (X, Y, Z) 472.4 IPM
Rapid traverse (W) 196.9 IPM
Rotary axis speed (B) 500°/min
Feed rate range .04–236.2 IPM
Tool changer capacity 30
Machine dimensions 173" x 169" x 124"
Machine weight 37,500 lbs
CNC control Tosnuc 888
Helical interpolation
Synchronous tapping
Teaching function
99 fixture offsets
Random angle chamfering
Corner rounding
Manual operation pendant
Handwheel feed for X, Y, Z, W, B axes
Full B-axis rotary table
Flood coolant system
Coolant through spindle
Lift-up chip conveyor
Table chip enclosure
Spindle motor 15/20 HP AC
