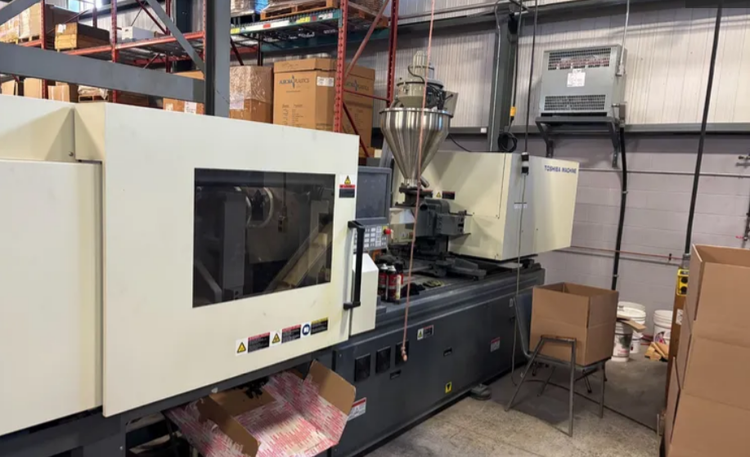

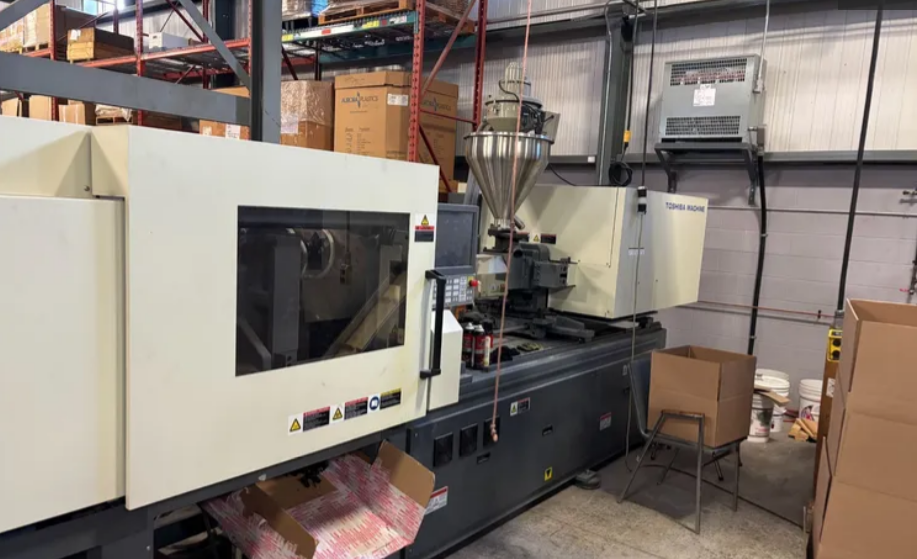

Toshiba EC200SXIIV50-U48-8B 180 T

Type All Electric
Clamping Force Tonnage 180 T
Barrel Code 8B
Shot Volume (PS) 15.4 oz
Screw Diameter 2.17"
Maximum Injection Pressure 23900 psi
Maximum Holding Pressure 23900 psi
Screw Speed STD 230 rpm
Injection Rate STD in3/s
Injection Rate High Speed in3/s
Screw Torque STD lbf. ft
Nozzle Touch Force 3.3 T
Tie Bar Distance H 22"
Tie Bar Distance V 20.1"
Platen Dimension H 31.1"
Platen Dimension V 29.1"
Clamp Stroke 17.7"
Maximum Daylight 41.3"
Mold Height Min 7.87"
Mold Height Max 23.6"
Ejector Force 5.5 T
Ejector Stroke 5.12"
Power supply Volts 460
Main Breaker Electric Capacity 125
Heater Capacity 15.8 kw
Injection Orientation Horz
Hours 3,457 hr.
Machine under power Under Power no Mould in Machine
Control CNC (InjectvisorV50)
Dimensions 19.7 x 4.9 x 6.2
Weight 16,000 LBS
