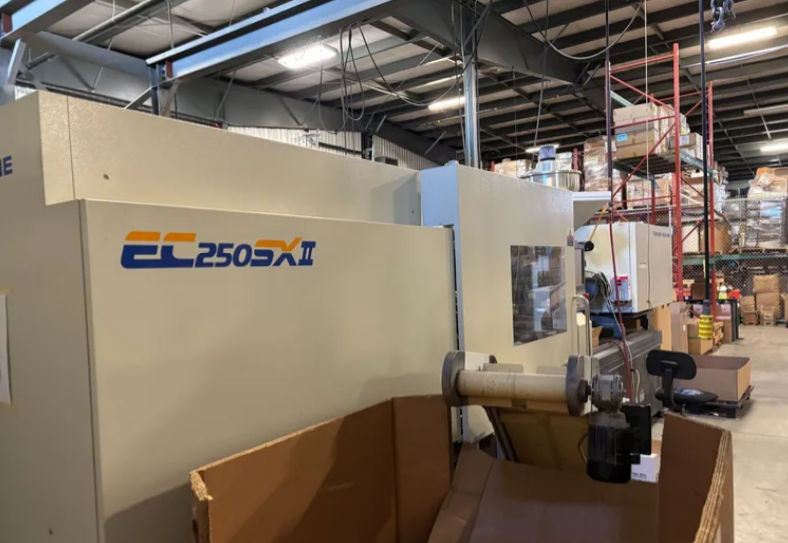

Toshiba EC250SXIIV50-U48-8B 254 T

Type All Electric
Clamping Force Tonnage 254 T
Barrel Code B
Shot Volume (PS) 15.4 oz
Screw Diameter 2.17"
Maximum Injection Pressure 23900 psi
Maximum Holding Pressure 23900 psi
Screw Speed STD 230 rpm
Tie Bar Distance H 24"
Tie Bar Distance V 22"
Platen Dimension H 34.6"
Platen Dimension V 32.7"
Clamp Stroke 21.7"
Maximum Daylight 48.4"
Mold Height Min 9.84"
Mold Height Max 26.8"
Ejector Force 5.5 T
Ejector Stroke 5.12"
Power supply Volts 460
Hours 3,457 hr.
Control CNC (InjectvisorV50)
Dimensions 21.0 x 5.4 x 6.5
Weight 20,400 lbs
Total Shots - 194,409
