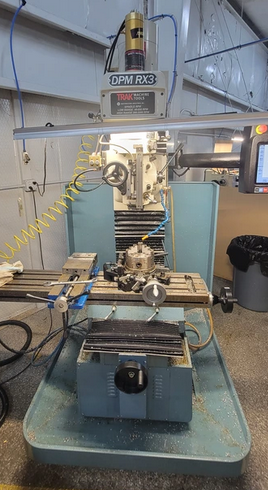

Trak DPM RX3 Vertical 5,000 RPM

Travel-Long: 17"
Travel-Cross: 31"
Control: ProtoTrak RMX CNC
Spindle Power: 5 hp
Spindle Speed: 5,000 RPM
Spindle Taper: CAT-40
Table Size: 10" x 50"
Machine Dimensions: 74" W x 77" L x 94" H
Machine Weight: 4,400 lbs
Auto Lube Pump
Precision Ground Ballscrews in Table, Saddle, and Ram
Chrome Hardened and Ground Quill
Meehanite Castings
Turcite Coated Slide Ways
Hardened and Ground Wide Way Surfaces
Programmable Spindle Control
Power Drawbar
Flood Coolant
2 or 3-axis CNC
3-axis DRO
15.6" Touchscreen LCD
Intel 2.0 GHz Processor
4 GB RAM
32 GB mSATA SSD
5 USB Ports
2 Ethernet Ports
Feedrate Override
Spindle Speed Override
LED Status Lights
E-Stop
Spindle Control (FWD, REV, OFF)
Feed Stop and Go
Fine/Coarse EHW Resolution Control
Coolant/Air Accessory Button with AUTO Mode
Power Reset Button
Headphone Jack for Video Sound
Fly-Out Window for Defaults Access
Feedrate per Minute or per Tooth
Spindle Speed RPM or Surface Speed
Drill Peck Type
Profile/Pocket/Island Passes Count
Finish Cut Settings
Step Over Percentages
Face Mill Tool Path
Z Entry (Plunge, Helical, Zig Zag)
Adaptive Tool Path Selection
Pocket and Island Default Parameters
Speed and Feed Override for Subroutines
Forward/Backward Mirror Direction
Software Limits for X, Y, Z
X and Y Home Positions
Inch or MM Selection
Startup Axis Mode (2 or 3-axis)
Maximum Rapid Feedrates
Coolant Mist Control
Cut Tolerances
Tool Compensation
