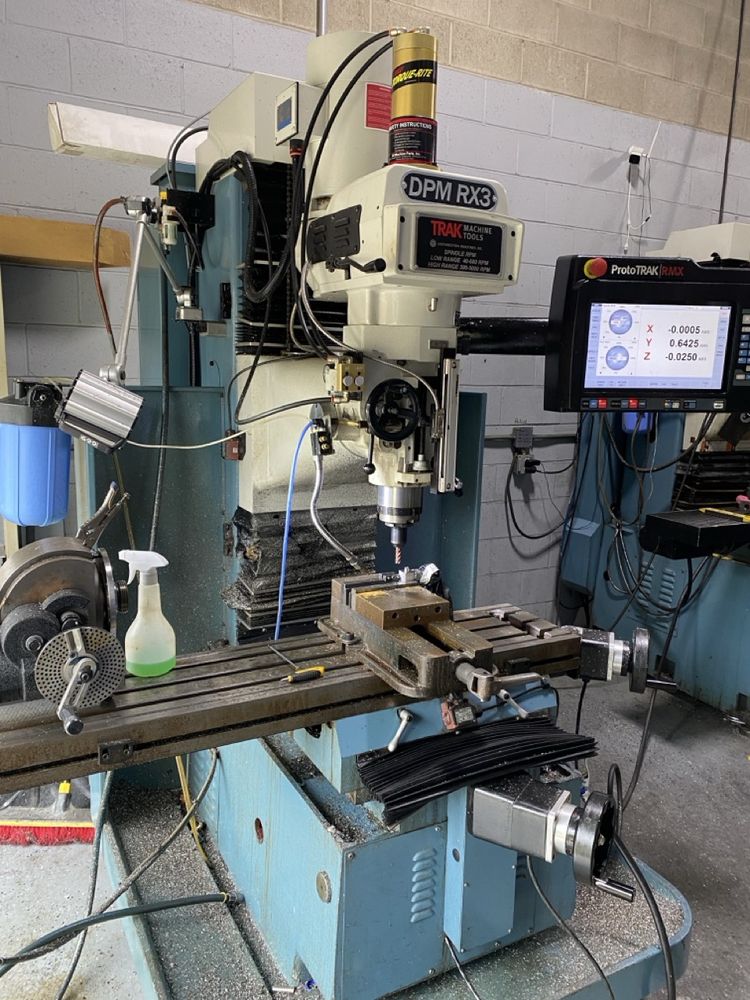

Trak DPM RX3 Vertical 5000 RPM

Table Size 50″ × 10″
T-Slots 3 × 0.63″ × 2.48″
X-Axis Travel 31.5″
Y-Axis Travel 17″
Z-Axis Travel 25.5″
Quill Diameter 3 15/16″
Max Quill Travel 5″
Spindle Taper 40 Taper
Spindle Speed Range 40–600 RPM
Spindle Speed Range 300–5,000 RPM
Spindle Motor Power 5 HP Continuous
Spindle Center To Column Face 20.5″
Max Workpiece Weight 1,320 Lbs
Table Height From Bed 36.75″
Max Spindle Nose To Table 25.81″
Machine Min Height 87.5″
Machine Max Height Approx. 96.75″
Overall Machine Width Incl. Table 73.5″
Length With Electric Door Closed 76.63″
Width With Full Table Traverse 102.25″
Length With Electric Door Open 96.63″
Footprint 24″ × 43.31″
Weight Net 4,100 Lbs
Weight Shipping 4,400 Lbs
Rapid Traverse Mechanical Handwheel 250 IPM X, Y, Z
Rapid Traverse Electronic Handwheels 400 IPM X & Y
Rapid Traverse Electronic Handwheels 250 IPM Z
Drilling Max Capacity 1″ Diameter
Milling Max Capacity 5 in³/min
Tapping Max Capacity 1″-8
Auto Lube Pump Standard
ProtoTrak RMX CNC Control
Power Draw Bar
