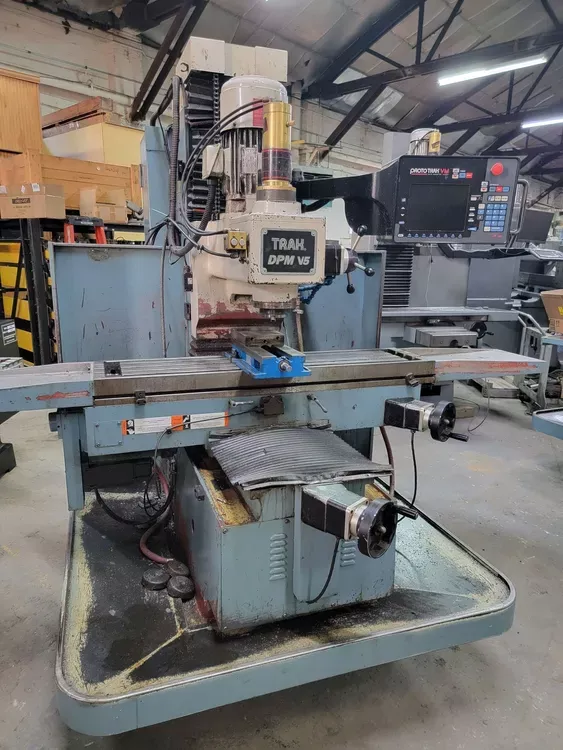

Trak DPM V5 Vertical 4000 RPM

Ref : 2736057-3-GO

Condition : Used

Manufacturer : Trak

Model : DPM V5

Type : Vertical

Spindle Speed : 4000 RPM

Year(s) : 2004

Quantity : 1

Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

X travel: 40"
Y travel: 20"
Z travel: 23.5"
Spindle quill travel: 5"
Spindle nose to table: 0 – 23.5"
Head swivel (left & right): 90 degrees
Control: Proto Trak VM (2017)
Spindle taper: NMTB 40
Spindle speed range: 160 – 4,000 RPM (A/C variable)
Spindle motor: 5 HP
Maximum workpiece weight: 1,760 lbs
Power drawbar
Auto lube
Kurt vise
Large chip pan
Table size: 50" × 12"
