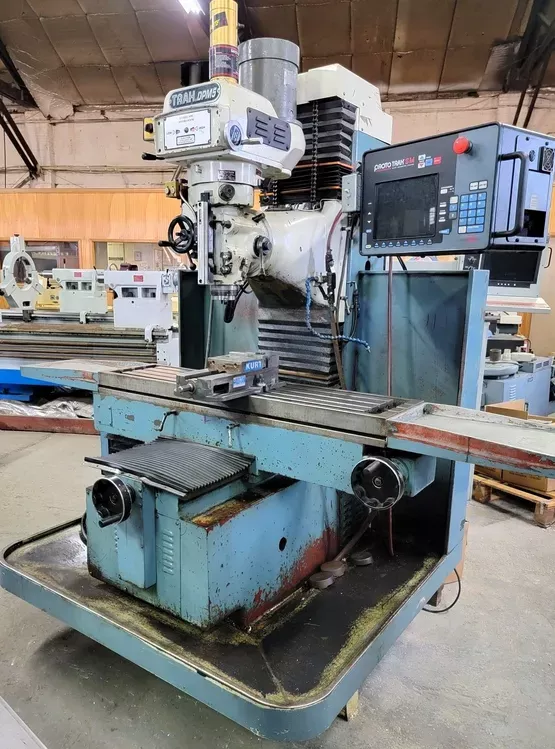

Trak DPMS5 Vertical 4000 RPM

X travel: 40″
Y travel: 20″
Z travel: 24″
Control: Proto Trak SM (2017)
Spindle taper: 40
Spindle speed range: 160–4000 RPM
Spindle motor power: 5 HP
Spindle center to column face: 20.5″
Spindle quill diameter: 4.13″
Maximum spindle nose to table: 24″
Maximum workpiece weight: 1760 lbs
Table size: 50″ × 12″
T-slots: 3 × 16mm × 63.5mm pitch
Power requirement (control): 110V, 1P, 15A
Power requirement (machine): 220V, 3P, 60Hz
Full load amps: 17.5 FLA
Height of table from bed: 41″
Minimum machine height: 87″
Maximum machine height: 100″
Width with table: 94″
Length with electrical box door closed: 80″
Overall width with full travel: 136″
Overall length with electrical door open: 105″
Footprint: 24″ × 48.4″
Way surface X axis: dovetail
Way surface Y and Z axis: square
Net weight (approx.): 4400 lbs
Shipping weight (approx.): 4700 lbs
