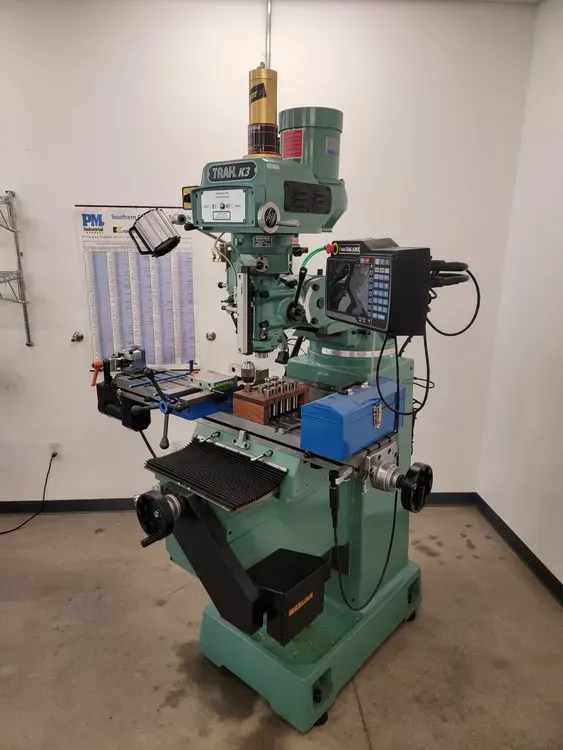

Trak K3 KMX Vertical 4200 RPM

TRAK K3 KMX
Year: 2018

Type: Vertical Mill
Table Size: 10 inches x 50 inches
T-Slots: 3 x 0.625 inches x 3 inches
Table Travel: 32 inches
Saddle Travel: 16 inches
Knee Travel: 16 inches
Maximum Quill Travel: 5 inches
Quill Diameter: 3.375 inches
Spindle Taper: R8
Spindle Speed Range (K3KMX without Spindle Control): 60–500, 600–4200 RPM
Spindle Speed Range (K3RMX with Spindle Control): 40–600, 300–5000 RPM
Head Tilt: 45° forward/back, 90° left/right
Quill Feeds per Revolution: 0.0015 / 0.003 / 0.006 inches
Spindle Motor: 3 horsepower
Control Power Requirement (K3KMX): 110V, 1 phase, 10A
Control Power Requirement (K3RMX): 110V, 1 phase, 8A
Machine Power Requirement (K3KMX): 208/480V, 3 phase, 8.5/4.25A
Machine Power Requirement (K3RMX): 208V, 3 phase, 11A
Maximum Workpiece Weight: 850 pounds
Machine Weight (K3KMX): 2,800 pounds
Machine Weight (K3RMX): 2,816 pounds
Machine Dimensions (K3KMX): 78 x 103 x 87 inches
Machine Dimensions (K3RMX): 78 x 103 x 92 inches
Rapid Traverse Speed X/Y: 100 IPM
Way Surface Type: Dovetail X/Z, Square Y
Misc Collets: included
Kurt Vise: included
