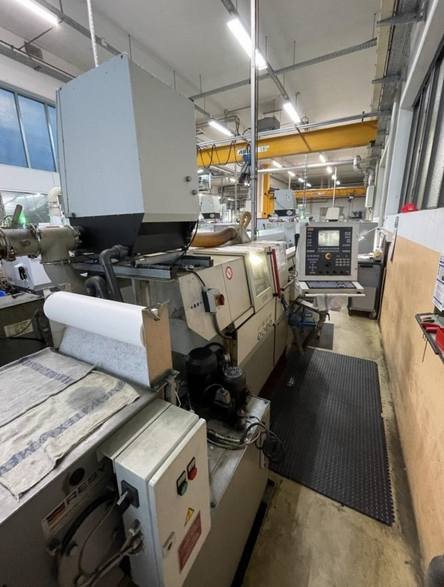

Traub CNC CONTROL 12,000 rpm TNL 12 6 Axis

TRAUB TNL 12
Year: 2009

Main spindle bore: 13 mm
Bar capacity main spindle: 13 mm
Main spindle speed: 12,000 rpm
Main spindle drive: 4.4 kW
Main spindle torque: 8.6 Nm
C-axis resolution main spindle: 0.001°
Counter spindle bore: 13 mm
Bar capacity counter spindle: 13 mm
Counter spindle speed: 12,000 rpm
Counter spindle torque: 8.6 Nm

C-axis resolution counter spindle: 0.001°
Counter spindle travel X3: 152 mm
Counter spindle travel Z3: 330 mm

Travel X1: 38 mm
Travel Y1: 25.4 mm
Travel Z1: 51 mm
Travel X2: 38 mm
Travel Z2: 51 mm

Tool turret: 2 x 6 stations
Driven tool stations: 2 x 6
Driven tool speed: 12,000 rpm
Driven tool power: 2.1 kW
Driven tool torque: 2.0 Nm
Control: TRAUB TX 8i-s V8
Total power requirement: 24 kW
Machine weight approx.: 3.4 t
Front attachment with 4 stations
Travel X4/Z4: 330/152 mm
Stations 1 and 4 with internal cooling
Polygon turning turret 2

Bar feeder: FMB MINIMAG/3200/A, for bars up to 18 mm
diameter and up to 3200 mm length
Chip conveyor
Coolant system with belt filter unit
