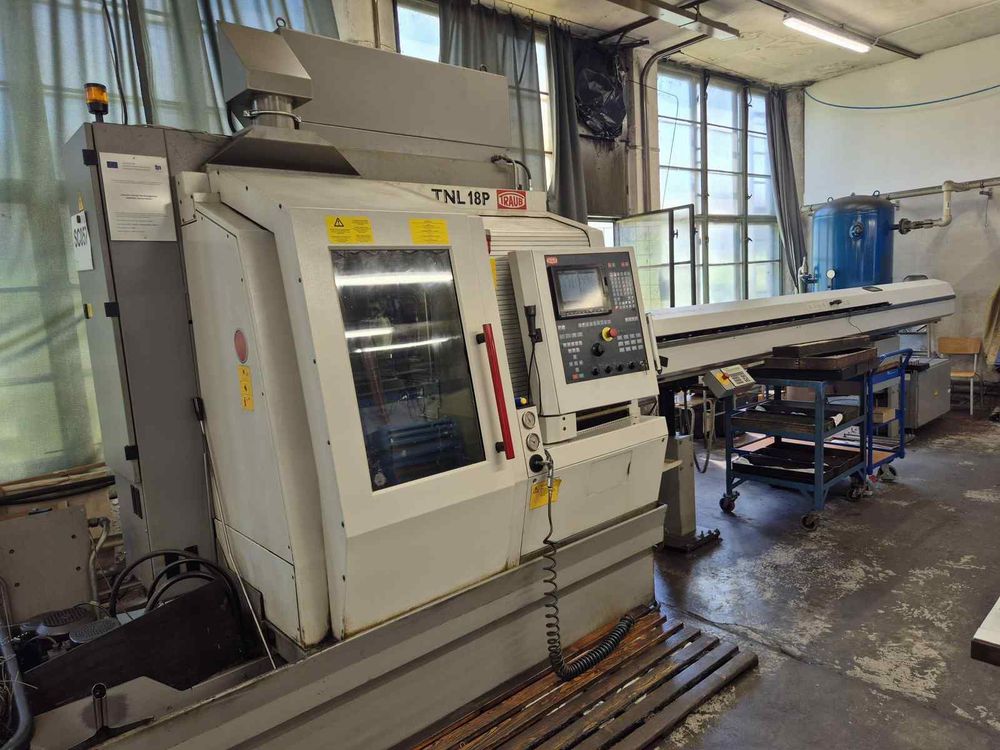

Traub TRAUB TX8i-p 10000 RPM TNL 18P 5 Axis

TRAUB TNL 18P
Year: 2013

X1-axis rapid traverse: 20 m/min
Z1-axis rapid traverse: 40 m/min

X1-axis travel: 120 mm
Z1-axis travel: 205 mm
X2-axis travel: 120 mm
Z2-axis travel: 250 mm
Y2-axis travel: -20/+40 mm
X2/Y2/Z2 rapid traverse: 20/20/40 m/min

Control: TRAUB TX8i-p
Spindle speed: 10000 RPM
Upper tool turret positions: 8
Driven tools on upper turret: 8
Lower tool turret positions: 7
Driven tools on lower turret: 7
Counter spindle speed: 12000 RPM
Max clamping depth on counter spindle: 175 mm
Max clamping diameter on counter spindle: 20 mm

Bar feeder: FMB Minimag 20/3200
Guiding bushings and collets for diameters 3–12 mm
Machine dimensions (L×W×H): 2505 × 1460 × 2250 mm
Machine weight: 4000 kg
Power supply: 24 kW
Machine under power
Test run available
Good technical condition
