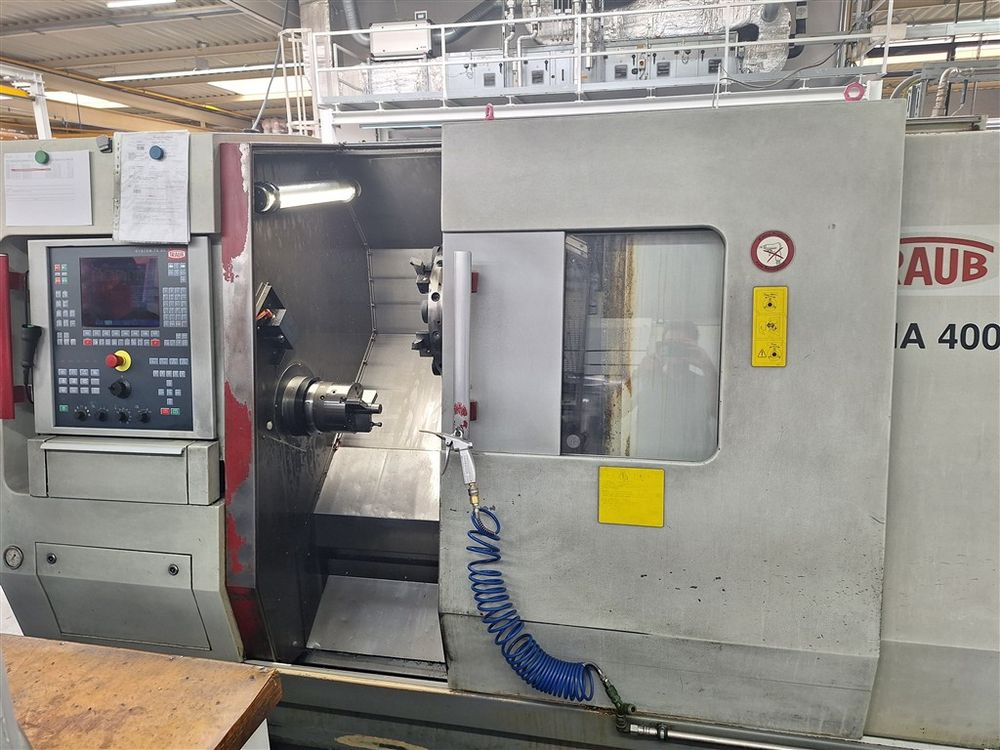

Traub CNC TX 8H 3150 rpm TNA 400 3 Axis

TRAUB TNA 400
Year: 2001

CNC Lathe
Control: CNC TX 8H
Turning Diameter: 340 mm
Turning Length: 750 mm
Total Power Requirement: 35 kW
Swing Diameter: 665 mm
Swing Diameter Over Slide Rest: 530 mm
X-Axis Travel: 285 mm
Z-Axis Travel: 750 mm
Y-Axis Travel: ±50 mm
Rapid Speed: 15 / 12 m/min
Spindle Speed: 5 - 3150 rpm
Power Capacity: 22 kW
Spindle Head: DIN 55026 A8
Tool Turret: 12 Stations
Number of Driven Tools: 12
Turning Speed Range: 5 - 4000 rpm
Power Capacity 25% ED: 5.5 kW
Machine Weight Approx.: 6000 kg
Machine Dimensions Approx.: 5 x 2.5 x 2.5 m
C-Axis Driven Tooling
Coolant Attachment
Chip Conveyor
Various Accessories
