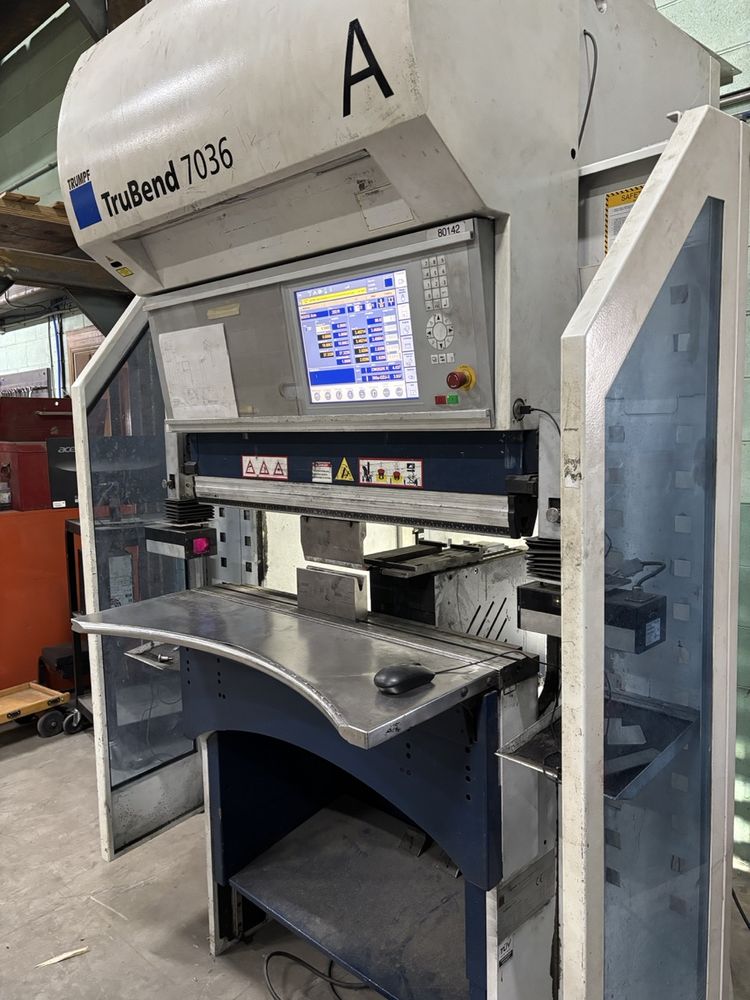

Trumpf TRUBEND 7036 40 U.S. tons

Press Force 40 U.S. tons
Bending Length 40″
Width Between Columns 37″
Maximum Table/Beam Distance 16.5″
Usable Installation Height 12″
Throat 6″
Operating Height 45″
Y Rapid 520 Inches per Minute
Y Working 59 Inches per Minute
Y Return Traverse Speed 520 Inches per Minute
X Axis 2362 Inches per Minute
R Axis 780 Inches per Minute
Z Axis 2362 Inches per Minute
Y Axis Position Accuracy 0.00008″
X Axis Position Accuracy 0.0008″
R Axis Position Accuracy 0.0008″
Y Axis Stroke 5″
Travel Path X Axis 9″
Max. Gauge Area in X 20″
Travel Path R Axis 3″
Connected Load 6 kVA
Length x Width 71″ x 52″
Height 94″
Weight 5733 lbs.
Control TASC 6000
6-axis Backgauge
Hydraulic Clamping
