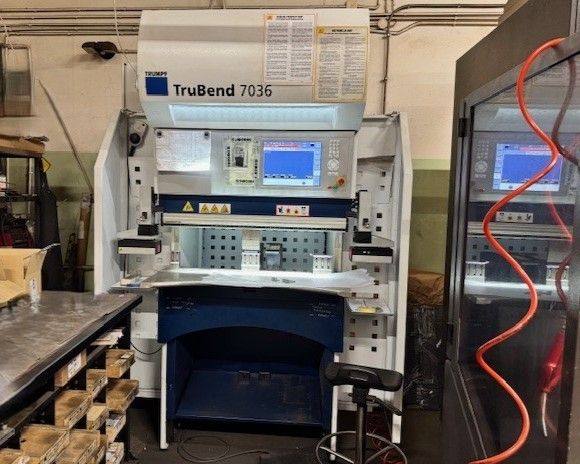

Trumpf TRUBEND 7036 (B19) 36 ton

Press force: 36 ton
Bending length: 1020 mm
Stroke: 120 mm
Beam entry: 295 mm
Distance between side frames: 932 mm
Throat depth: 150 mm
Control: TASC 6000
C-frame design
Press beam
Electromechanical direct drive
Y-axis distance measurement system with dynamic deflection compensation
Electrical cabinet air conditioning up to 40 °C
3-axis backgauge X-axis
3-axis backgauge R-axis
3-axis backgauge Z-axis
Carbon fiber gauge fingers
Manual upper tool clamp
Manual lower tool clamp
Integrated TRUMPF technology data
Data transfer interface
Network capability
USB interface
Foot switch operation
CE marking
Standard safety device
6-axis backgauge system
Mobile handwheel
Front comfort support table
Comfort foot rest
Rear LED work area illumination
Front LED work area illumination
Swiveling control panel
Sitting and standing aid
2 support consoles
2 document storage units
Graphic shop floor programming
Automatic TRUMPF tool clamps
BendGuard with block laser
