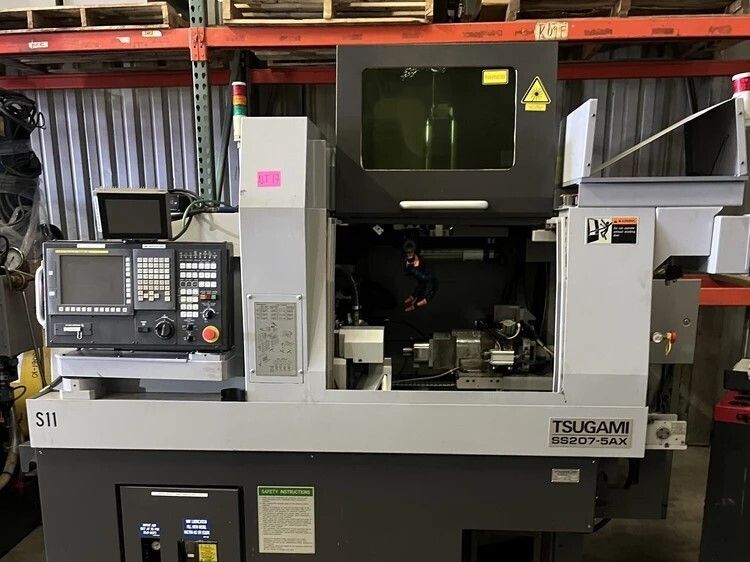

Tsugami Fanuc 31i-B5 CNC Control with 10.4" LCD 10,000 rpm SS207-5AX 4 Axis

Rapid Traverse Rate – 32 m/min
B1 Axis Tool Spindle Positioning Angle – 0° to 110°
B1 Axis Positioning Method – Servo controlled
Main Spindle C axis with brake
Sub Spindle C axis with brake
Fanuc 31i-B5 CNC Control with 10.4" LCD
250 Watt SPI Fiber Laser System
Rigid Tapping
Simultaneous all axes control
AC servo axes control
Main Spindle Collet Chuck unit (S&M TF25)
Back Spindle Collet Chuck unit (S&M TF25)
Parts catcher with exit conveyor and basket (max part length = 3.15")
Cutting oil tank with coolant tank level detector (40 Gal. Capacity)
Sub spindle air blast
Integral motor driven guide bushing unit
Door interlock with switches
Spindle Cooling for Main, Sub and Guide Bushing Motors
Air/Oil pressurized driven tool gearbox units
Air pressurized guide bushing unit
Centralized lubrication system with oil level detector (0.21 Gal. Capacity)
Leveling bolts & pads
Hand tools (spanners, wrenches, etc.)
One complete set of manuals
Machine test report
Parameter list

(8) ½” Square turning tool positions main spindle
(3) Driven tool positions main spindle, cartridge type
(8) ID positions, main or sub
(4) Static back working stations – ID or Turning
(2) Main spindle deep hole drill positions (max 100 mm)

Up to 38 tool positions possible
Maximum Machining Diameter – 0.787″
Maximum Machining Length – 8.26″/Chucking
Back Spindle Max. Diameter – 0.787″
Back Spindle Front Ejection Maximum Length – 3.2″
Main Spindle Speed – 200–10,000 rpm
Back Spindle Speed – 200–10,000 rpm
Rotary Tool Spindle Speed – 200–8,000 rpm
Main Spindle Motor – 3/5 hp
Back Spindle Motor – 2/3 hp
Rotary Tool Motor – 1 hp
Coolant Motor – 0.5 hp
Main Spindle Tool Collet – ER16
Sub Spindle Tool Collet – ER11
Input Power – 6 KVA
Center Height – 39.37″
Machine Weight – 7,260 lbs
Laser Power – 25–250W Fiber
Laser Cooling System – Water Cooled
Laser Enclosure Classification – Class 1
Max Cutting Speed – 19.685″/sec
Laser Wavelength – 1070 ± 10 nm
Frequency – 2–20 kHz
Pulse Width – 0–CW
Nozzle Standoff Adjustment – NC controlled
Variable Gas Pressure – 5 to 350 psi
Number of Gas Connections – 2
Through Work Piece Coolant – 246 psi
Coolant Front Feed – up to 1,000 psi
Tube Maximum Wall Thickness – 0.039″
Tube Minimum OD – 0.080″
Tube Maximum OD – 0.787″
Tube Minimum OD:ID Ratio – 3:1
Optic Focal Length – f=100 mm
Beam Reduction (Optional) – 0.5/0.7
Beam Expansion (Optional) – 1.4/2.0/2.8
Exchangeable protection glass – Yes
Cutting Nozzle Diameter – 1 mm to 3 mm
