Union PCR160 6.3 2800 RPM

Ref : 31393
Condition : Used
Manufacturer : Union
Model : PCR160
Spindle Size : 6.3
Spindle Speed : 2800 RPM
Year(s) : 2008
Quantity : 1
Location : Seller or machines location:
United States (USA)

Reference #31393

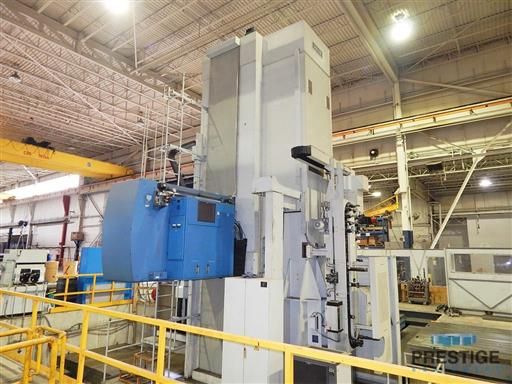

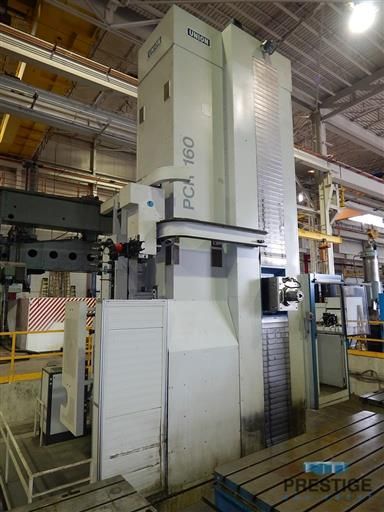

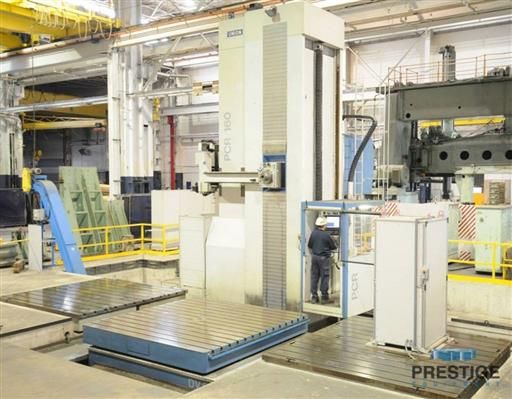

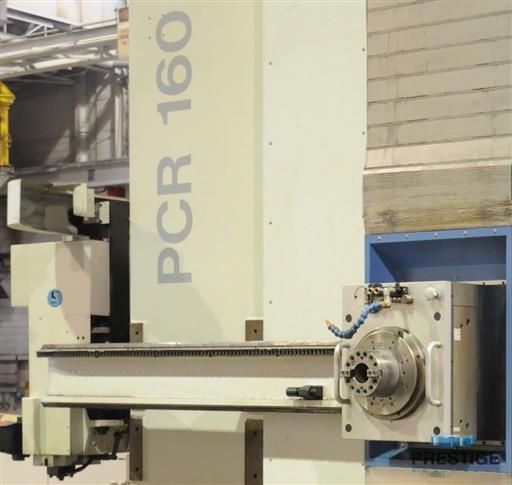

6.3" Union PCR160 CNC Floor Type Horizontal Boring Mill


FEATURES:
Siemens 840D CNC Controls
118.11" x 118.11" B-Axis Infeeding Rotary Table
40-Station Automatic Tool Changer

CAPACITY:
Spindle Diameter ...................... 6.3"
Ram Cross Section ..................... 17.7" x 21.7"
Spindle Taper ......................... CAT 50
Y-Axis Headstock Travel ............... 196.85"
X-Axis Column Travel .................. 314.96"
Z-Axis Ram Longitudinal ............... 59.05"
W-Axis Spindle Stroke ................ 27.55"
V-Axis Table Longitudinal Travel ...... 118.11"
Combined Travel Ram & Spindle ......... 86.60"
Spindle Speeds: ....................... 1-2800 RPM

UNION DV-60 CNC INFEEDING ROTARY TABLE:
Model ................................ DV-60
Table Size ........................... 118.11" x 118.11"
Table Infeed, Z-Axis ................. 98.42"
Table Rotation, B-Axis ............... 360 Degree
Table Rapid Traverse, Z-Axis ......... 472 IPM
Table Feeds .......................... 1-236.11 IPM
Table Table Rotation ................. 1.8 RPM
Table Weight Capacity ................ 60 Ton

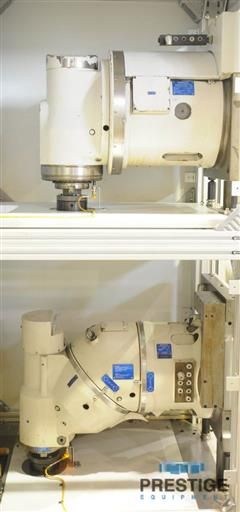

SEMPUCO KFU D3 2-AXIS POSITIONING HEAD:
Univeral Milling Head with Automatic Indexing
1-Degree Steps Hirth Coupling and Auto Tool Clamping
Swivelling Range 2 x 360 Degrees
50 ISO Tool Holder
33.5 HP Maximum Power @ 250 RPM
800 NM Maximum Torque @ 250 RPM
3,000 RPM Maximum Speed

EQUIPPED WITH:

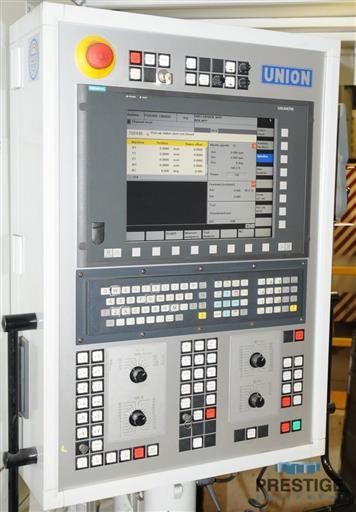

Siemens 840D CNC Controls

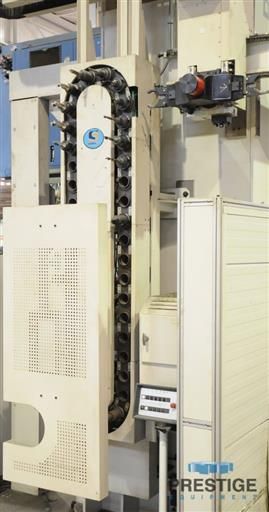

40 Station Automatic Tool Changer
Thru-Spindle Coolant
118.11" x 118.11" Union DV-60 B-Axis Rotary Table
Head Change Tower
Right Angle Head
Universal Head
T-Slotted Floor Plates
Pick Up Station For Milling Heads
80 HP Spindle Motor

NOTES:
Additional Specifications Available On Request
