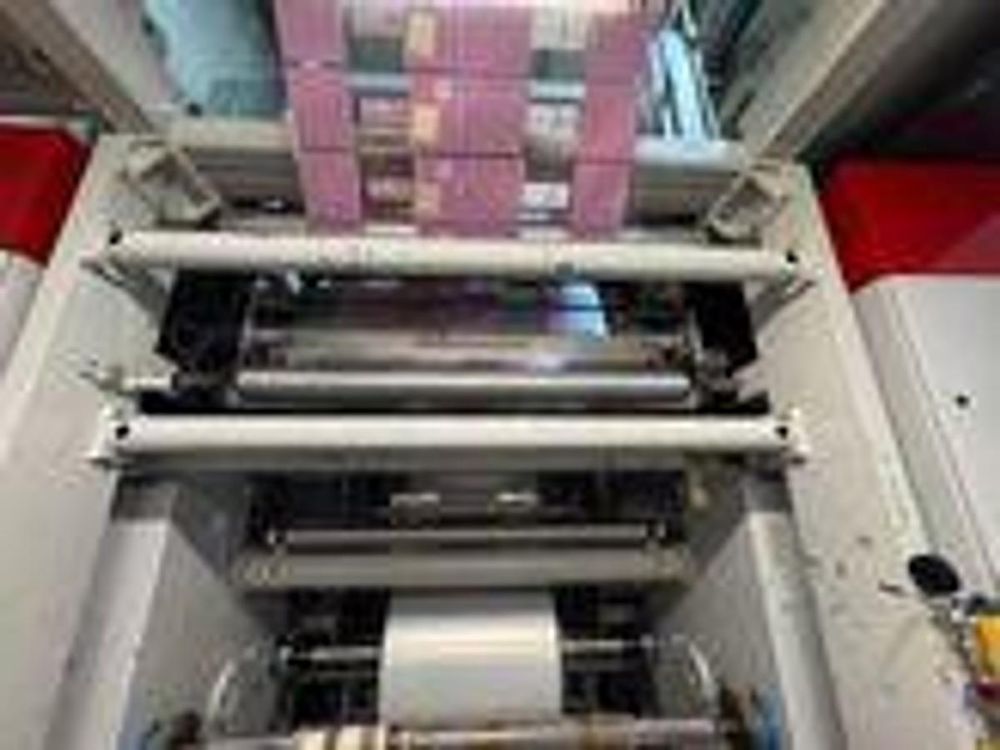

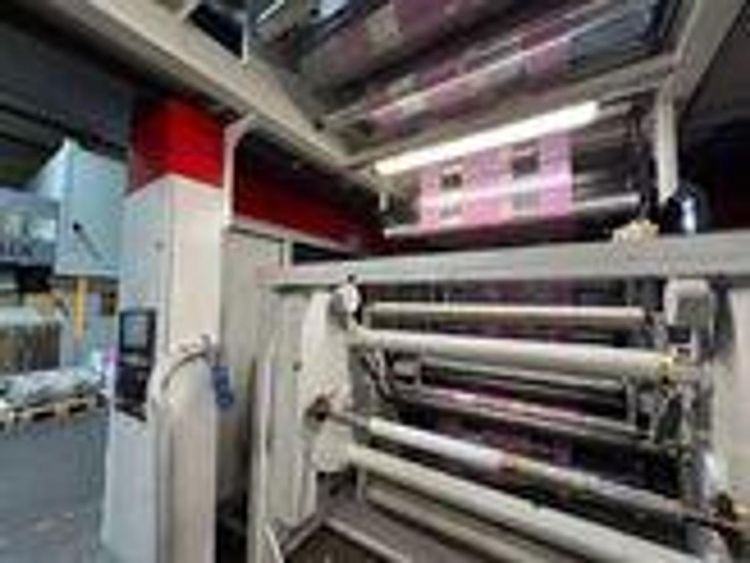

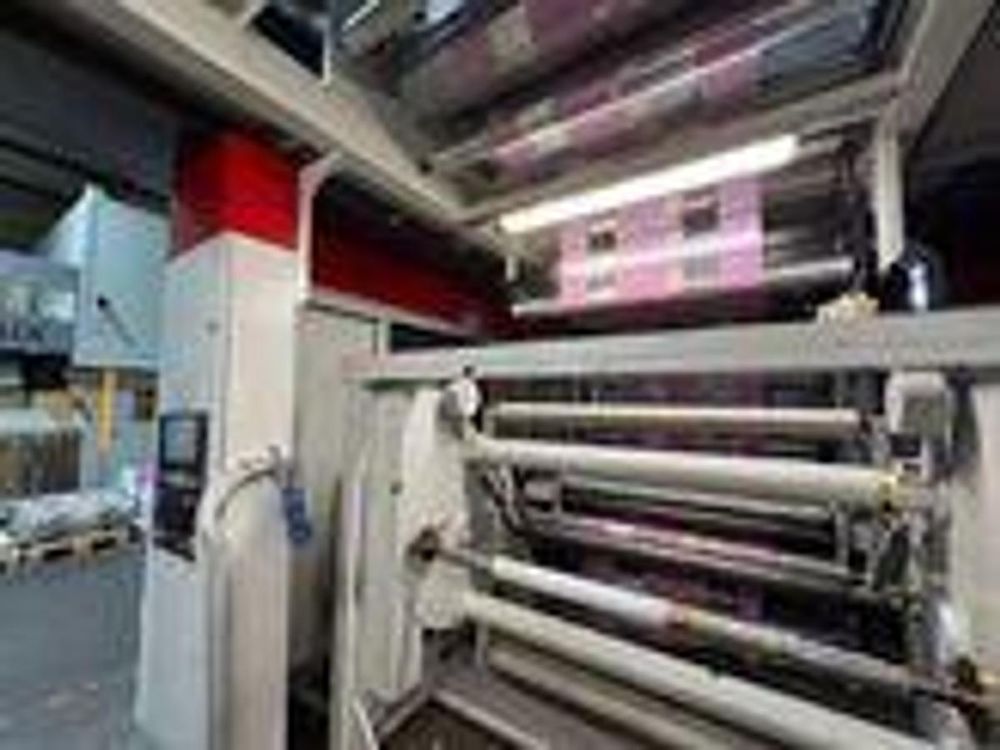

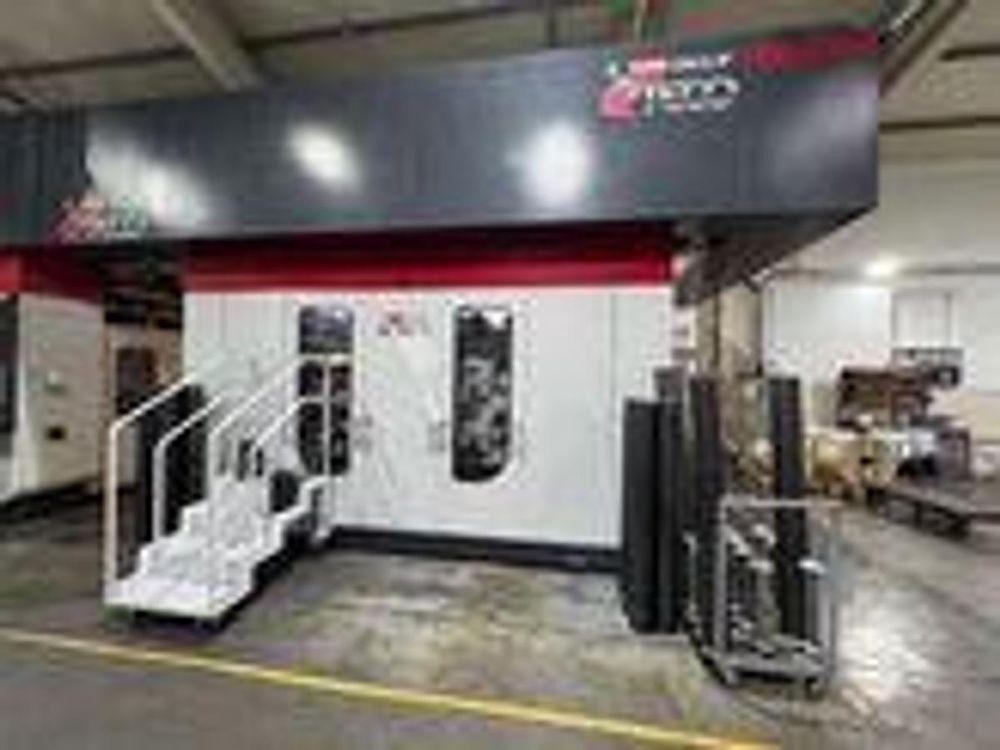

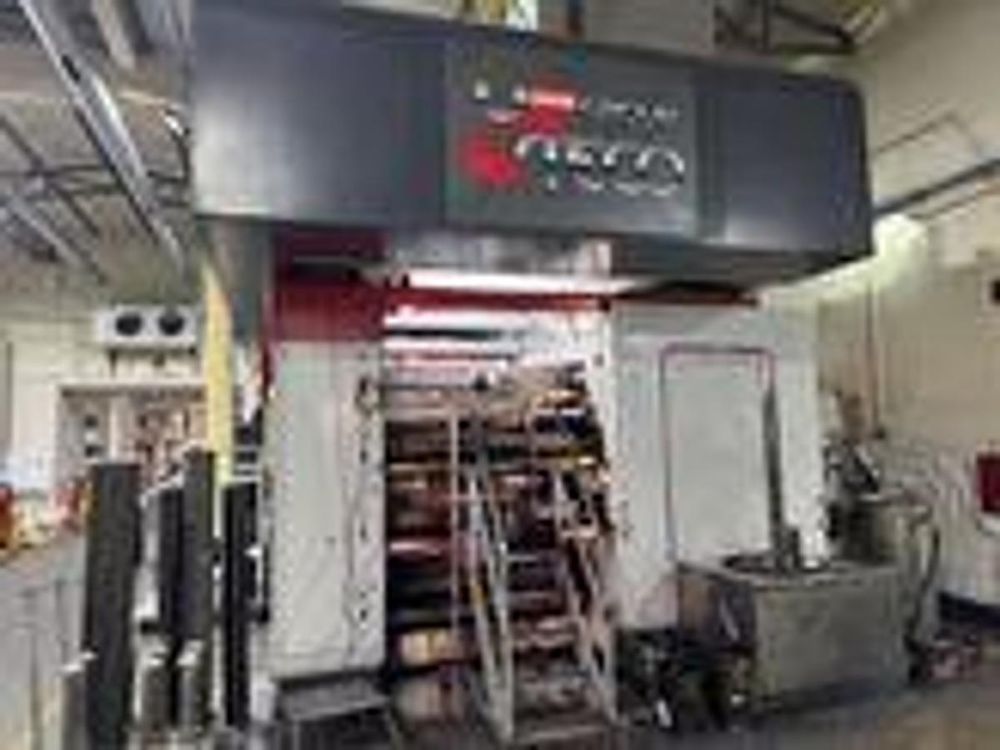

Uteco CRYSTAL 808 8 1500mm

GEARLESS CI FLEXO LINE
Number of colours: 8
Print possibilities: 8 + 0
Fast sleeve change
4 motor per deck CNC position system
Computer supervision
Web width: 1550mm
Print width: 1500mm
Minimum print repeat: 400mm
Maximum print repeat: 850mm
Unwind: turret automatic with roll loading system
Maximum reel diameter unwind: 1000mm
Rewind: turret automatic with roll unloading system
Maximum reel diameter rewind: 1000mm
Drying: 2 zones, 4 fans with inverter control, final drying tunnel 5t long, 2 gas burners, Automatic air recirculation system in both zones with LEL control
Video camera: Grafykontrol Progrex 500 with camera Matrix 500, 3ccd with 100% inspection, click and drag register adjacent system, 100% defect control
Corona treatment: Ferrarini Benelli, driven
Web guides: in and out
Viscosity control: automatic Gama G26
Washing system: automatic wash up system
Inking system: closed chamber doctor blades
Reprint system complete with register control
Automatic printing pressure setting Kiss and Go
Automatic printing pressure adjacent with speed P2P
+ print sleeves
