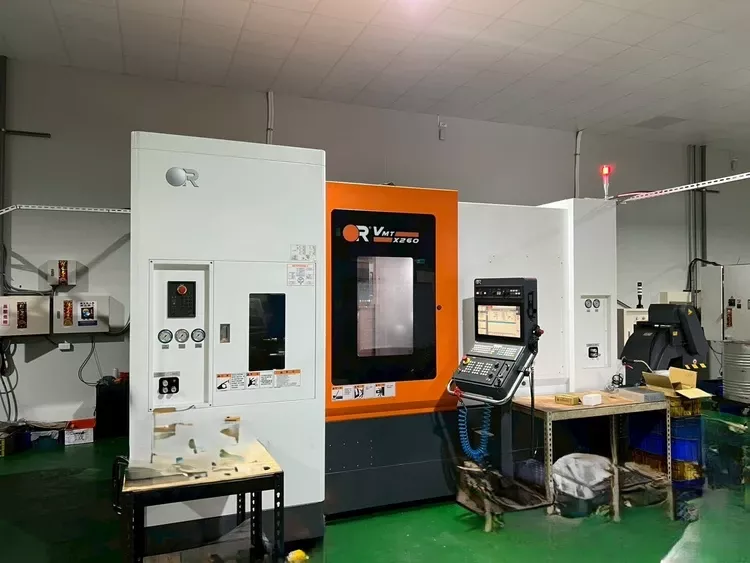

Taichung, Victor VMT-X260 5 Axis

X1-Axis Travel 25"
Z1-Axis Travel 46"
Y1-Axis Travel 10.2"
W-Axis Travel Sub Spindle 42.5"
B-Axis Head Travel -30 to +210 Degrees
B-Axis Head Indexing 0.00
Rapid Traverse Rate X1 1417 ipm
Rapid Traverse Rate Z1 1417 ipm
Rapid Traverse Rate Y1 1417 ipm
SIEMENS ONE 5 AXIS SIMULTANEOUS CONTROL
Coolant Through Milling Head
RPM60 Part Setter
Chip Conveyor
Swing Over Bed 26"
Turning Diameter 19.7"
Turning Length 42.3"
Distance Between Spindles 54.2"
Chuck Size 1 10"
Spindle Nose 1 A2-8
Spindle Bore Diameter 1 2.95"
Bar Capacity 1 2.59"
Spindle Speeds 1 3,500 RPM
Spindle Horsepower 1 29.5 hp
Chuck Size 2 10"
Spindle Nose 2 A2-8
Spindle Bore Diameter 2 2.95"
Bar Capacity 2 2.59"
Spindle Speeds 2 4,200 RPM
Spindle Horsepower 2 29.5 hp
B-Axis Milling Spindle Taper HSK-63
B-Axis Milling Spindle Speed 12,000 RPM
B-Axis Milling Spindle Horsepower 29.5 hp
ATC for Milling Spindle 40
Tool Diameter 3.54" / 4.92"
Tool Length 11.8"
Tool Weight 15.4 lb
Machine Weight 27,558 lb
Dimensions 214" x 119" x 115" Floor Space with Conveyor
