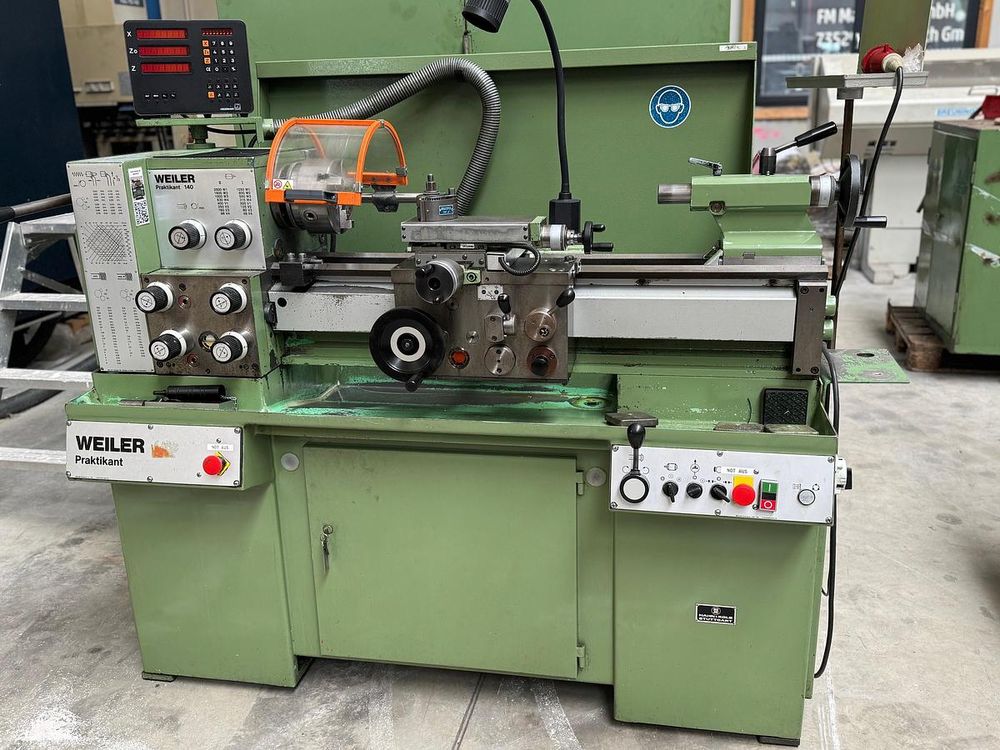

Weiler Engine Lathe 2,500 rpm Praktikant 140 B
Ref :
2739099-3-GO
Condition :
Used
Manufacturer :
Weiler
Type :
Engine Lathe
Spindle Speed :
2,500 rpm
Model :
Praktikant 140 B
Year(s) :
1985
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Center height: 140 mm
Center distance: 650 mm
Swing diameter over bed: 280 mm
Swing diameter over cross slide: 190 mm
Spindle taper: DIN 55027 / DIN ISO 702-3 Size 5
Spindle bore: 43 mm
Spindle diameter in front bearing: 70 mm
Drive power: 2.6 / 3.1 kW
Speed range: 48–2,500 rpm
Number of speeds: 16
Number of feeds: 24
Longitudinal feed: 0.02–0.63 mm/rev
Cross slide feed: 0.006–0.2 mm/rev
Length: 1,600 mm
Width: 800 mm
Height: 1,300 mm
Weight: approx. 650 kg
