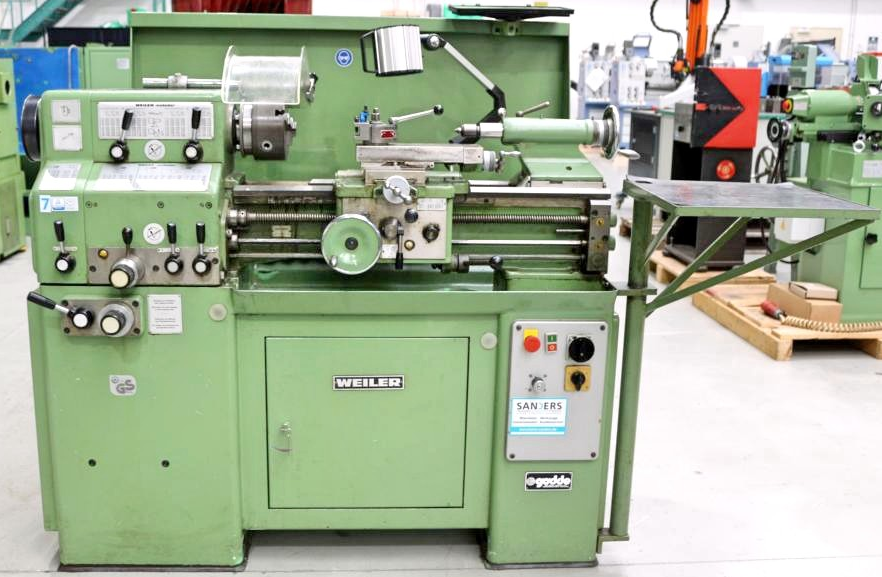

Weiler Engine Lathe 3550 RPM MATADOR VS 2

Ref : 2755557-3-AW

Condition : Used

Manufacturer : Weiler

Type : Engine Lathe

Spindle Speed : 3550 RPM

Model : MATADOR VS 2

Year(s) : -

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

Turning Length 500 mm
Turning Diameter Over Bed 297 mm
Turning Diameter Over Slide Rest 160 mm
Spindle Bore 36 mm
Tool Adaptor DIN 55022 Gr. 5
Quill MT 3
Quill Travel 90 mm
Turning Speeds 30 - 3550 RPM
Motor Speeds 1410 / 2830 RPM
Total Power Requirement 3.3 kW
Voltage 380 V
Machine Weight 620 kg
Machine Dimensions 1420 x 700 x 1200 mm
Robust Lead/Feed Screw Lathe
RÖHM Three-Jaw Chuck Ø 160 mm
Foldable Lathe Chuck Guard
Chuck Key
MULTIFIX Steel Holder A with 3 New Inserts
Movable Tailstock
Swiveling Machine Light
Control Panel Front Left
Automatic Feeds for Face and Upper Support
Machine Base with Cabinet Door
Chip Splash Guard Rear Panel
1x Empty Tool Cabinet
Emergency Stop Button
Operating Instructions
