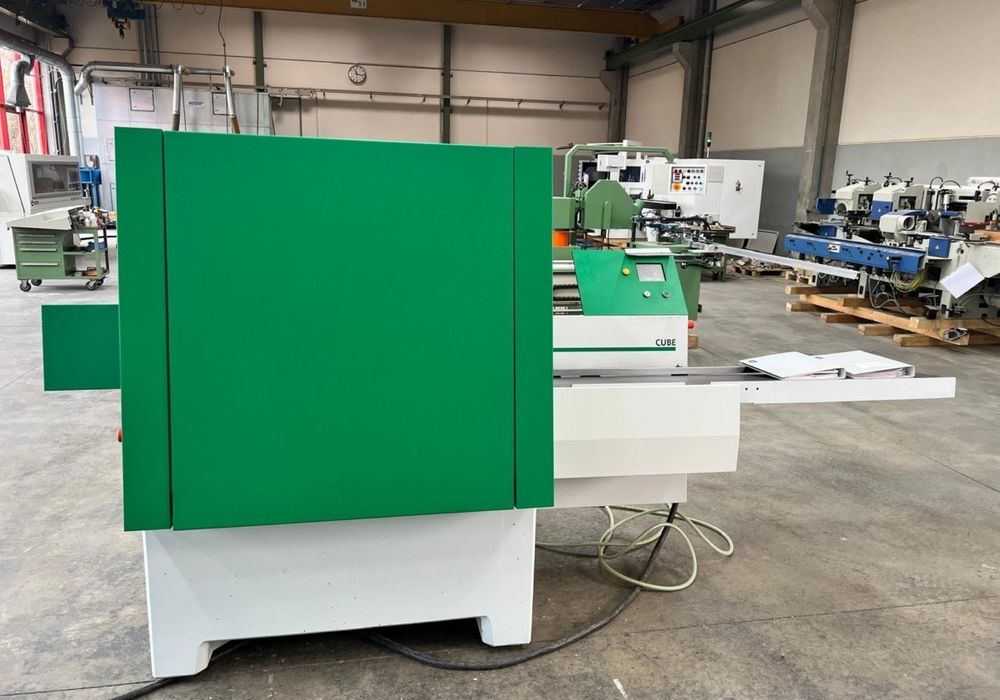

Weinig Cube

Four-side planer
Machine is cleaned and checked.

Technical data:
Working width 20 - 260 mm
Working height 8 - 160 mm (with tool flight circle 125 mm)

Spindles
WEINIG Easylock with precision reversible knives in HSS for quick and convenient knife changing. You have never changed a knife so quickly.

Customer benefits:
- no adjustment necessary
- short downtimes
- no adjustment errors
- easy to use

Motor strengths:
1st spindle bottom: 7.5 kW
2nd spindle left + 3rd spindle right common motor 11.0 kW
4th spindle bottom: 7.5 kW

Feed system
Frequency-controlled feed, infinitely variable 6 - 12 m/min
Durofer pointed tooth rollers with depth limiter and self-cleaning
Pneumatic pressure for feed rollers, including water separator

Cycle-controlled dressing to support manual dressing.
The feed roller is released after the second feed roller has gripped the workpiece.
After leaving the second feed roller, the feed roller is brought into the starting position for the next workpiece.

Machine electrical system
Operating voltage 400 volts
(voltage range 380 - 420 volts), 50 hertz

Electrical design according to DIN VDE 01 13, electrical equipment of industrial machines EN60204, IEC- 204-1.
Other electrical regulations are not taken into account.

Before operating frequency-controlled devices and systems, the customer must
install an all-current-sensitive residual current device in accordance with DIN/VDW 0100-482 in operating facilities at risk of fire

Control of the extraction system via the machine software

Machine stands, tables and stops
Planting table 2.0 m long (including jointing tine)
One sliding roller in the outfeed table

Automatic lubricant supply for removing resin from the table, including 5 liters of lubricant.
- controlled by incoming and outgoing wood
- lubricant quantity dependent on the set planing width
- controlled by running meters traveled
- improved transport of individual parts
- reduction in contamination from resinous wood
- extremely easy to use

One sliding roller in the outfeed table

MPV - MoulderPreView
Optical projection of the finished dimensions onto the raw part before

processing. - Dimensional control before planing
- Consideration of deflection and curvature when setting
- Quick correction of the planing and joining

Customer benefits:
- Assessment of the workpieces before processing
- Higher product quality
- Visual inspection

Machine operation
The clear software was specially developed for the CUBE.
Thanks to the intuitive operation, training is not necessary.

What can the CUBE software do:
- Lightning-fast setting of the workpiece dimensions
- Motorized setting of the planing and joining
- Clear layout, large symbols
- Memo function
The last 10 dimensions are saved and can be repeated if necessary. - stepless adjustment of the feed rate - 6 to 12 mlmin - choice between dressing, cyclic
dressing and leveling - understandable diagnosis using graphics and plain text - operating status display using traffic lights
Part recognition when dimensions change Unique part recognition.
Before the machine moves to a new dimension, it is checked whether there are workpieces in the danger area.
Customer benefits: - quick dimension change when the motors are running - more safety for people
and machines - longer service life Safety and sound insulation

Full safety cover Easily foldable safety hood covers the entire work area (feed and spindles) and protects against mechanical hazards.
With the CE version (in the EC internal market), it is not possible to open the safety hood during operation.
An interior light in the safety hood The machine is supplied with the CE mark and the associated EC declaration of conformity.
Connection data
Operating pressure 6 bar
Nominal pressure 8 bar
Total connected load 28 KW (approx. 38 pS)
(The required connected load depends on factors such as
cutting cross-section, feed rate, chip angle and type of wood!)

Energy saving
Flow-optimized suction hoods and specially developed tools with a ventilation effect reduce the required suction power in the machine by more than 60%.
By eliminating interfering edges, the energy introduced from the cutting process sends the chips into a flow-optimized curved path and sucks them away.
This reduces the required air speed from approx. 34 m/s to approx. 20 m/s and the flow resistance from approx. 2200 PA to approx. 1000 PA.
Customer benefits:
- lower operating costs
- less dirt and dust
- higher workpiece quality
- longer service life
- reserves in the extraction system

INCLUDED:
4 used planing heads with reversible knives:
for spindle 1 bottom: planing head 285 mm long, diameter 120 mm
for spindle 2 right: planing head 170 mm long, diameter 120 mm
for spindle 3 left: planing head 170 mm long, diameter 120 mm
for spindle 4 top: planing head 285 mm long, diameter 120 mm
