1/1

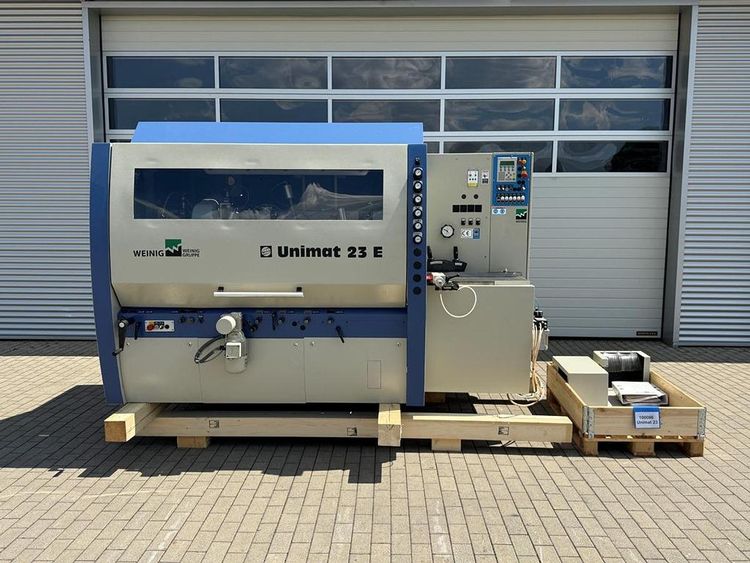

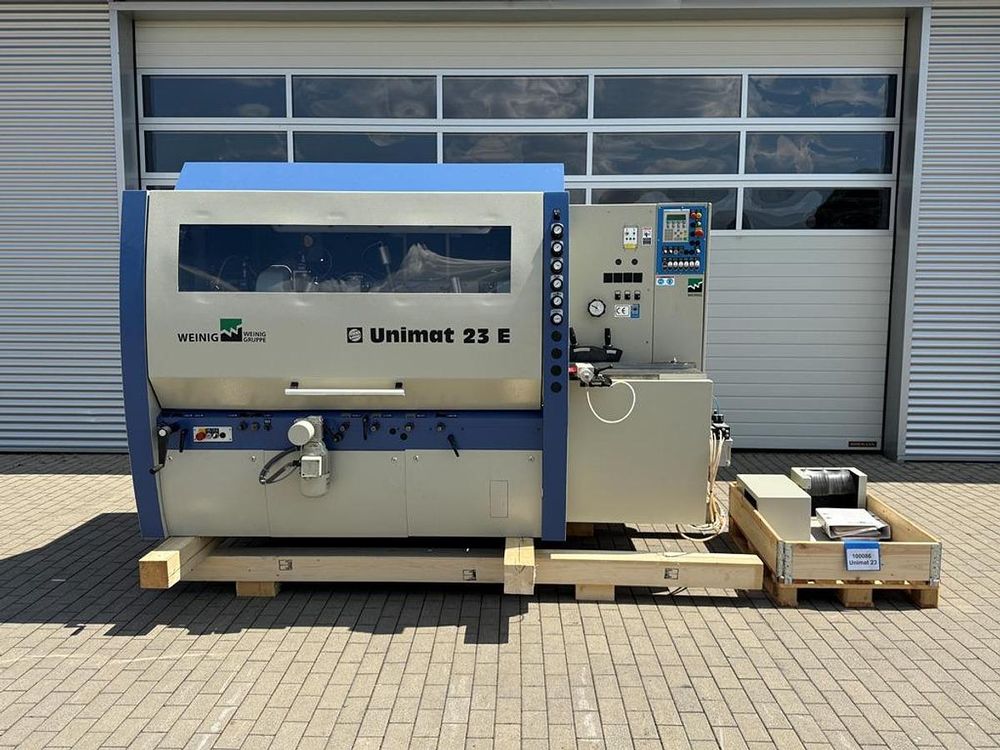

Weinig Unimat 23 E
Ref :
2728491-15-MT
Condition :
Used
Manufacturer :
Weinig
Model :
Unimat 23 E
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Four-side planer
Condition Used
spindles 5
working width 260 mm
working height 180 mm
Control ATS system
Air cushion table Yes
Table lubrication Automatically
Driven table rollers Yes
spindle 1 Bottom / 11 kW / 40 mm / 8,000 rpm
spindle 2 Right / 15 kW / 40 mm / 8,000 rpm
spindle 3 Left / common motor with spindle 2 / 40 mm / 8,000 rpm
spindle 4 Top / 11 kW / 40 mm / 8,000 rpm
spindle 5 Bottom / 7.5 kW / 40 mm / 8,000 rpm
spindle 6 Chamfering unit top left / 1 kW
feed 4 kW / 5 – 24 m/min
