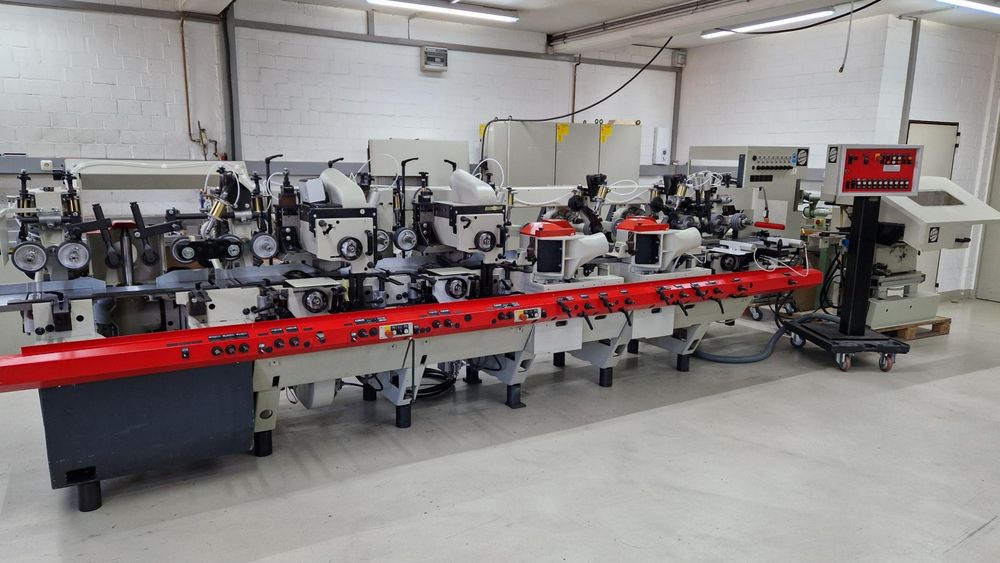

Weinig Hydromat H-23 with feeder

Hydraulic WEINIG Type 814 accelerator
Short infeed table
heavy 4-roller infeed section
Frequency inverter controlled feed speed 8-80 m/min

Feed motor 18.5 KW
Spindle bottom 11.0 KW
Spindle right 11.0 KW
Spindle left 11.0 KW
Spindle right 11.0 KW
Spindle left 11.0 KW
Spindle top 15.0 KW
Spindle bottom 11.0 KW
Spindle top 15.0 KW
Spindle bottom 11.0 KW
Spindle universal 11.0 KW (4-sided)

– Spindle rotation 6,000 rpm.
– Spindle diameter ø 50 mm
– All spindle motors with new motor start/brake combination
– Pneumatically supported pressure rollers from above
– Feed rollers D=140 mm
– 6 driven bed rollers
– Sp 1 + 6 + 7 + 8 + 9 with counter bearing
– Sp 8 + 9 with straight jointer
– Sp 8 + 9 with profile jointer
– Sp 6 + 8 pneumatic pressure
– reduced feed roller distance
– Hard chromed table plates
– Hard chromed fences
– Pneumatically supported lateral pressure rollers
– Automatic bed lubrication
– Central position of lubrication points
– Freestanding control panel
– Total connected load appr. d145 KW / 400 amps
– Free-standing electric masters cabinet
– Operating instructions, spare parts book and circuit diagram
– Machine without planing heads
– Machine dimensions 6,0 x 2,3 x 1,8 m
– Weight approx. 8.500 kgs
** New horizontal / vertical spindles
** New counter bearings
** All spindles with HL-bearings
** All motors with NEW bearings
** New electronic Motorsoft start / brake devices
** New hard chromed bed plates and side fences
** Plenty new parts built in
Condition: Machine overhauled – in mint order. Almost as factory new.
