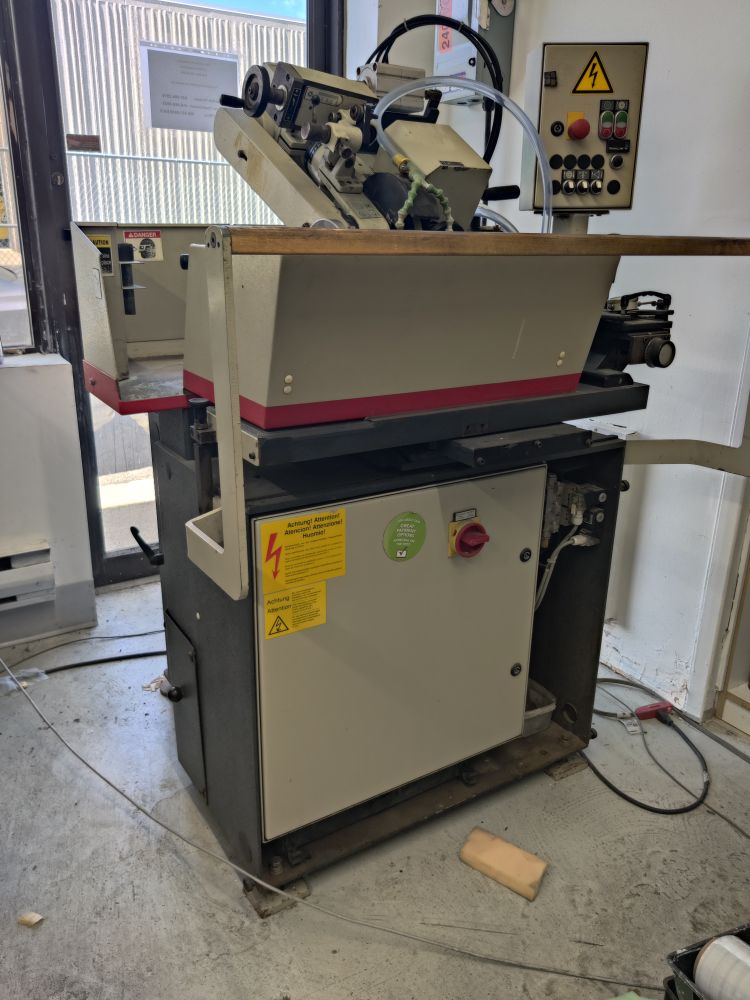

Weinig Rondamat 960 Profile

Features and Specifications:
Grinding wheel diameter min. / max.: 5.9" / 8.9" (150 / 225 mm)
Grinding wheel width (ceramic, Borazon, diamond): 2 - 3 - 4 - 10 mm (0.08" - 0.12" - 0.16" - 0.39")
Grinding wheel bore: 2.4" (60 mm)
Grinding spindle motor: 1.5 HP (1.1 kW)

Clearance angle:
Back clearance angle: 0° - 30°
Side clearance angle: 0°- 20°
Planer heads: 60°

Coolant device:
Coolant tank capacity: approx. 50 L
Coolant: 4.4 lbs (2 kg)

Tooling:
Maximum tool width: 9.4" (240 mm)
Tool diameter min.-max. knife heads: 3.9" / 11.8" (100 / 300mm)
Approximate dimensions: 60" x 60" x 60"
Approximate weight: 2,000 lbs (907 kg)
