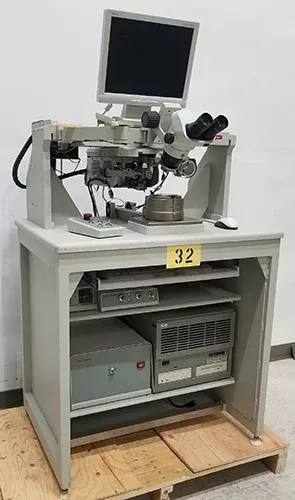

West Bond 353637E-90 Automatic Gantry Large Area Triple Convertible Wire Bonder

West Bond 353637E-90 Automatic, Gantry,
Large Area, Triple-Convertible Wire Bonder.

Currently configured for Wedge Bonding. Model 353637E is a gantry with
overhead ways and a moving bond head that brings the bonding function
to the work and leaves the material handling process flow
under customer control.
It uses the full 2400B Series software to locate and bond automatically fine
wire connections arrayed over a large, stationary work piece.
There is no limit to the size of the work as this machine is entirely above
the bond plane. The area traversed for bonding is five and three-eights by
nine and one-half inches for all bond methods.
The wedge-wedge bonding method accepts aluminum wire,
or gold wire with work piece heat. The primary wire feed method through
angled clamps can be converted by exchange of clamp assemblies to
vertical-feed wedge bonding for deep-walled work packages.
This machine is intended to bond groups of parallel wires on
work pieces pre-aligned for front-to-back bonding.
Quality expectation is high with missing wire detection that
functions without work contact, and with on-screen presentation of
bond progress via a second, side-view camera.
