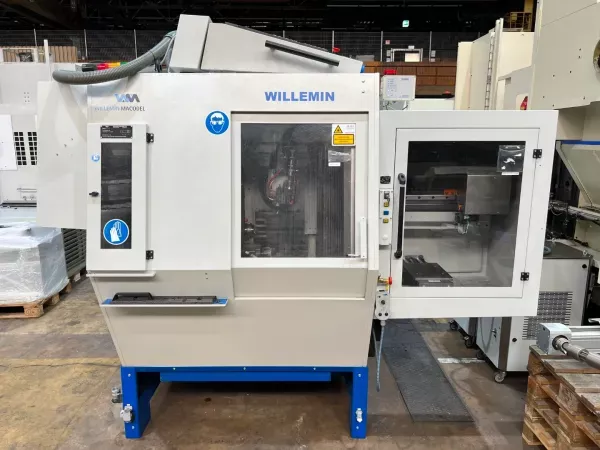

Willemin Macodel W 408B Vertical 30,000 rpm

X-axis travel: 250 mm
Y-axis travel: 200 mm
Z-axis travel: 300 mm
Rapid traverse (X/Y/Z): 30 m/min
Feed force (X/Y/Z): 3700 N
Resolution (X/Y/Z): 0.0001 mm
B-axis rotation: -15° to +100°
B-axis with tailstock in position: -20° to +45°
B-axis with tailstock removed: -20° to +90°
B-axis max speed: 20 rpm
B-axis drive torque: 750 Nm
B-axis hydraulic clamping: 50 bar
B-axis holding torque: 300 Nm
B-axis resolution: 0.0001 mm

Main spindle type: HSK E40
Spindle power (100%): 10 kW
Spindle power (25%): 15 kW
Spindle torque (100%): 8 Nm
Spindle torque (25%): 12 Nm
Spindle speed range: 50–30,000 rpm

A-axis spindle type: A4
Max bar diameter: 40 mm
A-axis max speed: 35 rpm
A-axis nominal torque: 112 Nm
A-axis max torque: 238 Nm
A-axis resolution: 0.0001°
A-axis clamping pressure: 70 bar
A-axis holding torque: 130 Nm

Tool changer discs: 2
Tool positions per disc: 24
Max tool weight: 1 kg
Tool changer rotation speed: 60 rpm

Max tool diameter (adjacent tools loaded): 50 mm
Max tool diameter (adjacent free): 63 mm
Max tool length from spindle nose: 95 mm
Part handling slide stroke: 80 mm
Feed force: 1700 N
Tilting moment: 90 Nm
Resolution: 0.0001°
Hydraulic pressure for tilt: 100 bar
Workpiece manipulator diameter: 25 mm
Manipulator stroke: 710 mm
Linear feed per motor rev: 70.4 mm/rev
Max transfer speed: 60 m/min
Max workpiece weight: 5 kg
Manipulator stroke: 1120 mm (2×560 mm)
Max vertical stroke: 150 mm
Workpiece holder Ø / length: Ø 32 mm / 100 mm
Part ejector Ø / length: Ø 32 mm / 100 mm
Accuracy: ±0.05 mm
Grip force: 45 N (at 6 bar)
Max gripper opening: 14 mm (2×7 mm)
Operating air pressure: 6 bar
Hydraulic system pressure: 95–105 bar
Coolant tank volume: 80 L
Chip tray volume: 30 L
Operating viscosity: 10–15 cST

Exhaust system
Fire suppression system
Probe
Coolant system
Oil cooler
Data backup
Complete operating documentation
