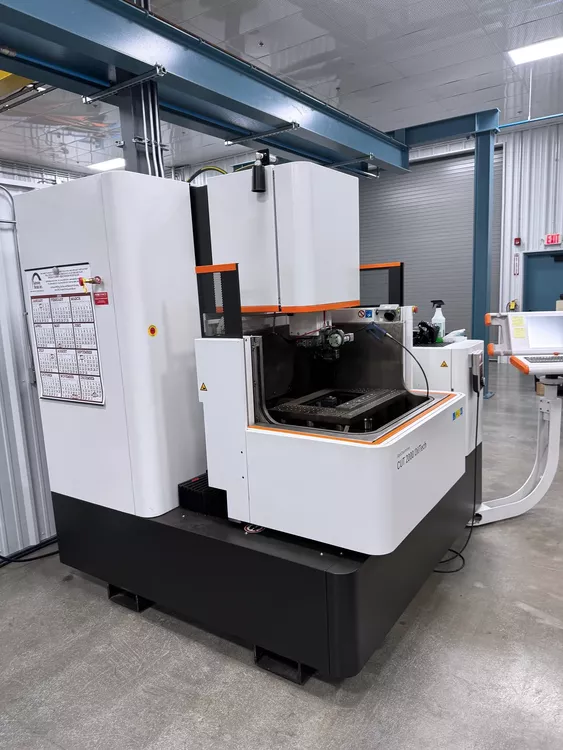

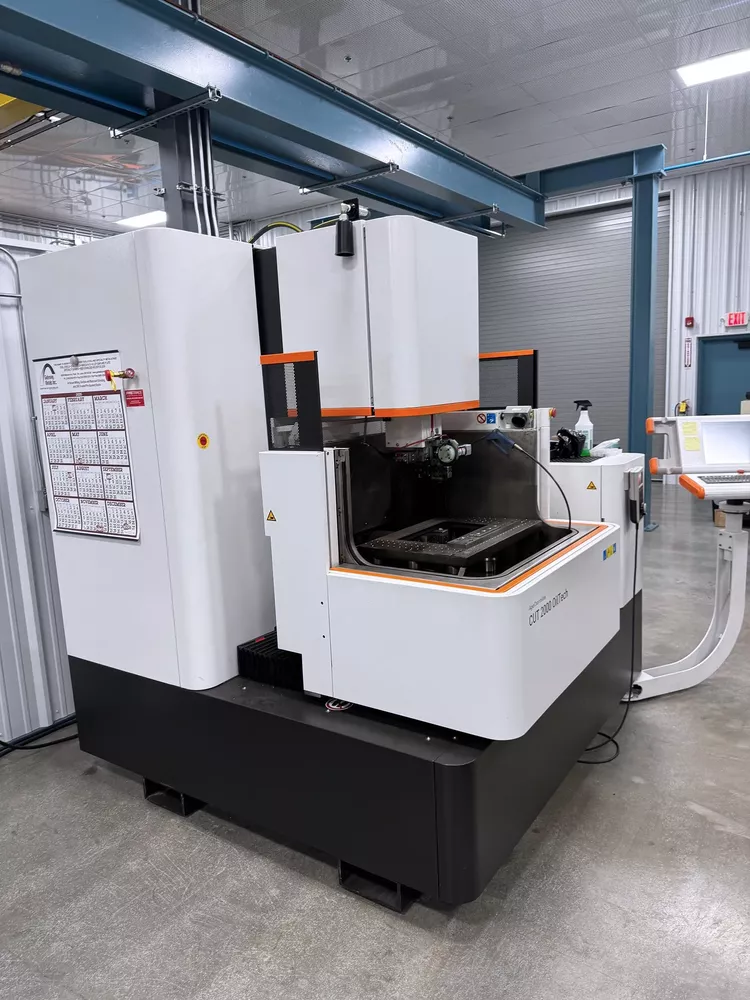

Agie Charmilles CUT 2000 OilTech

X-axis travel: 13.77 in
Y-axis travel: 9.84 in
Z-axis travel: 10 in
U-axis travel: ±2.7 in
V-axis travel: ±2.7 in
Taper angle / height: 30° / 3.93 in
Maximum workpiece dimensions (W x D x H): 29.5 x 21.6 x 9.8 in
Maximum workpiece weight: 990 lbs
Wire diameter range: 0.002 – 0.011 in
Minimum surface finish: 2 µin
Control: Vision 5
Machine weight: 6,500 lbs
Drop tank: automatic
15″ LCD display
Dielectric tank
Automatic wire changer
Fire extinguisher
Agie Setup 3D
