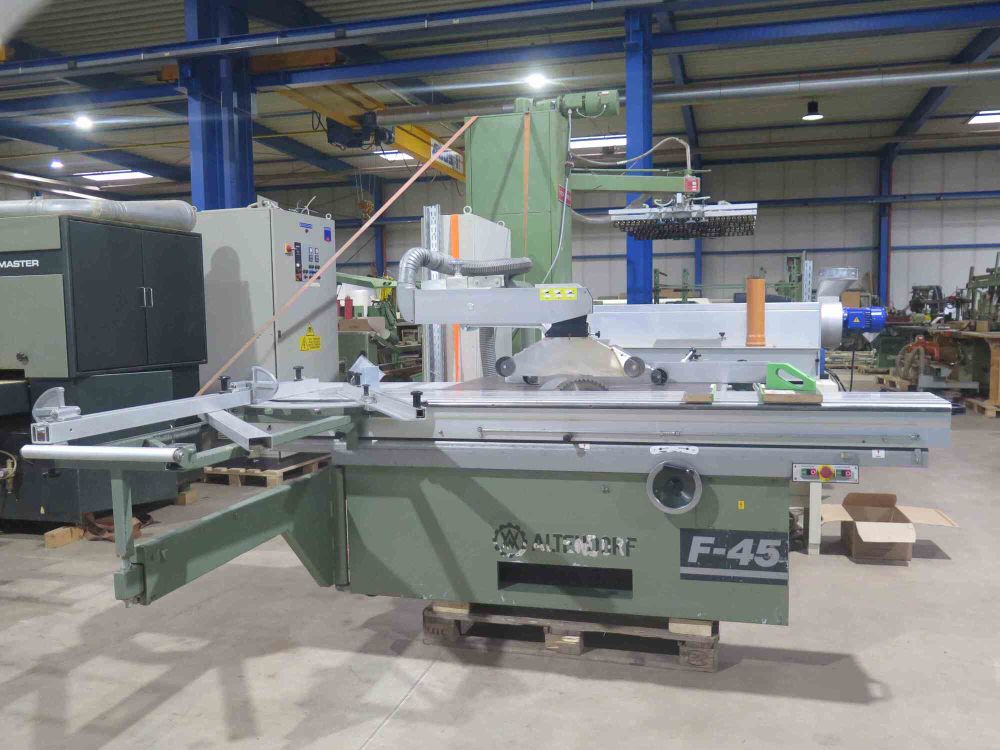

Altendorf F 45

Panel Saw
Sliding table length 2800 mm
Saw blade swivels 45°
With scoring unit
Dust hood above the saw blade
Includes wide dust hood for 45° cuts
and narrow hood for 90° cuts
Angle stop on the sliding table
Motor power 5.5 kW, lightly braked
Scoring motor 0.75 kW
Cutting width to the right of the saw blade 1050 mm
With table extension 840 mm x 410 mm
With table widening 420 mm x 420 mm
Saw table size 1200 mm x 730 mm
Height adjustment with handwheel
Swivel adjustment with handwheel
Maximum saw blade diameter with scoring unit 350 mm
Maximum saw blade diameter without scoring unit 400 mm
Cutting height at 90° maximum cutting height: 130 mm
Cutting height at 45° maximum: 90 mm
Saw shaft speed: 3000/4000/5000/6000 rpm
Dust extraction port above saw blade, diameter 80 mm
Dust extraction port at bottom, diameter 120 mm
2 flip stops on the support table
Length stop with magnifying glass and roller support

Weight on pallet: 1100 kg
Dimensions: 2900 mm x 2830 mm x H 1500 mm
Loading dimensions: 2900 mm x 1600 mm x H 1700 mm
