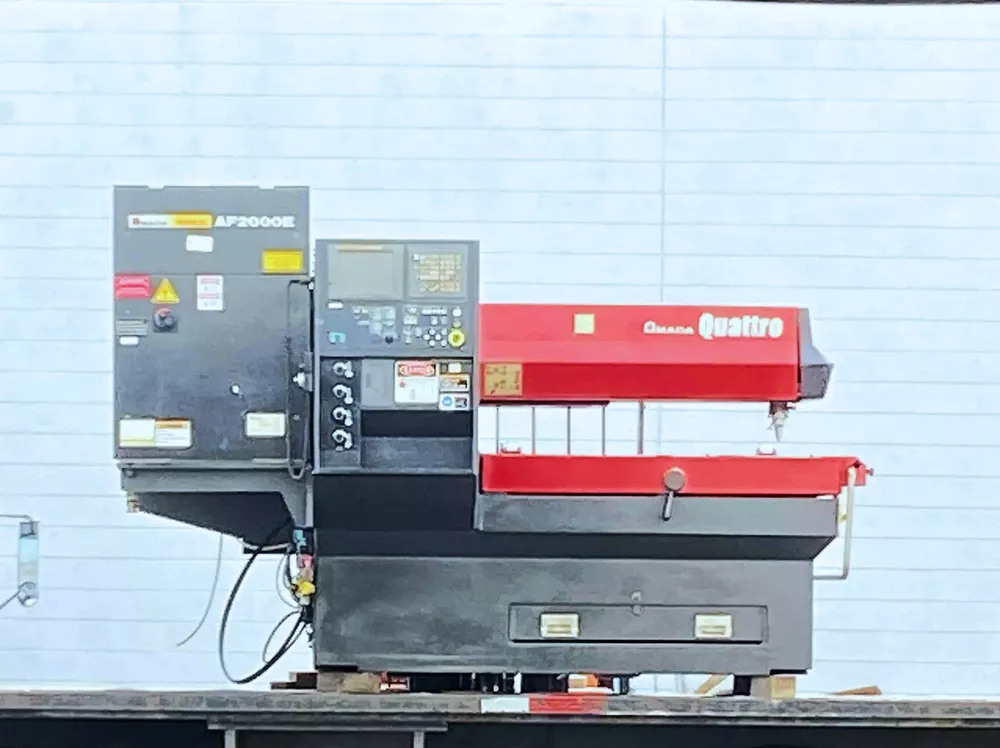

Amada AF2000E CNC Fanuc 16i-L / 16i-LB series

Laser type Output CO laser, axial-flow AF 2000E oscillator
Laser power 2000 W (2 kW)
Working area (X × Y travel) 1260 mm × 1260 mm
Z axis travel 100 mm
Maximum material thickness mild steel with O ~12 mm
Maximum material thickness stainless steel ~5–6 mm
Maximum material thickness aluminium ~3–4 mm
Control CNC Fanuc 16i-L / 16i-LB series
Electrical / power requirements main connection ~200 V; ~40 kVA
Air pressure required around 6 bar compressed air
Positioning / travel speeds X/Y/Z ~30 / 30 / 15 m/min
Simultaneous speed ~42 m/min

Features / Accessories:
Machine was taken offline about 1 month ago
