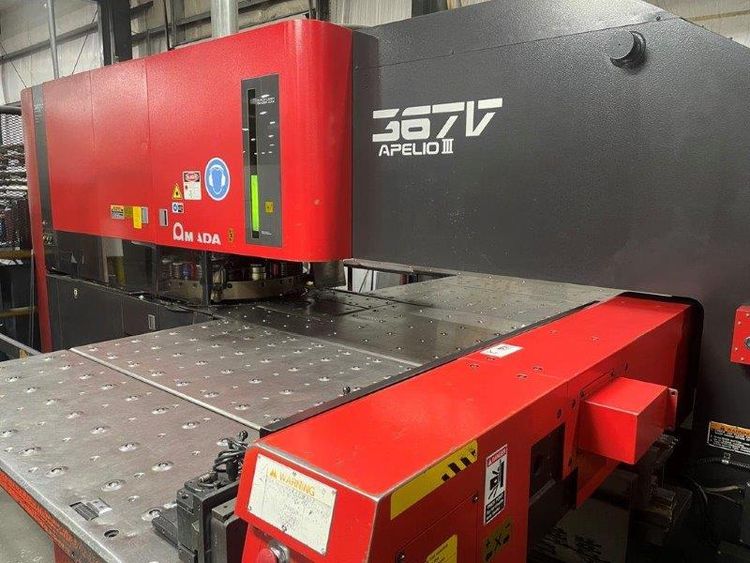

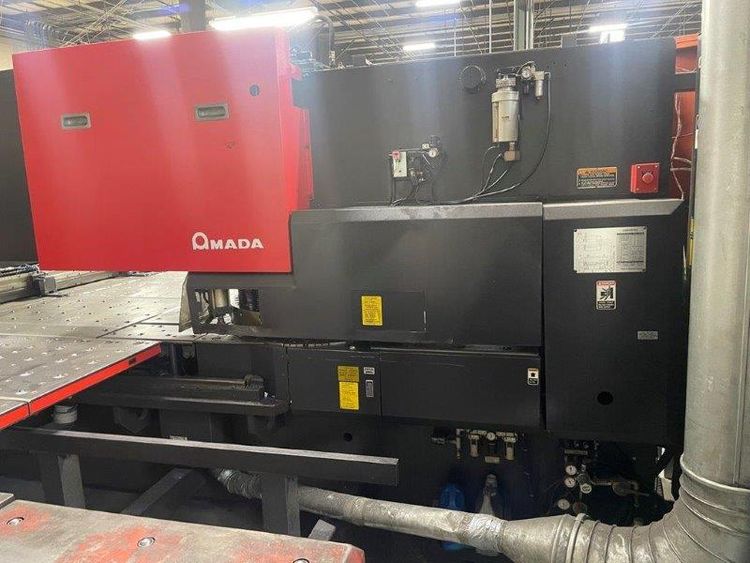

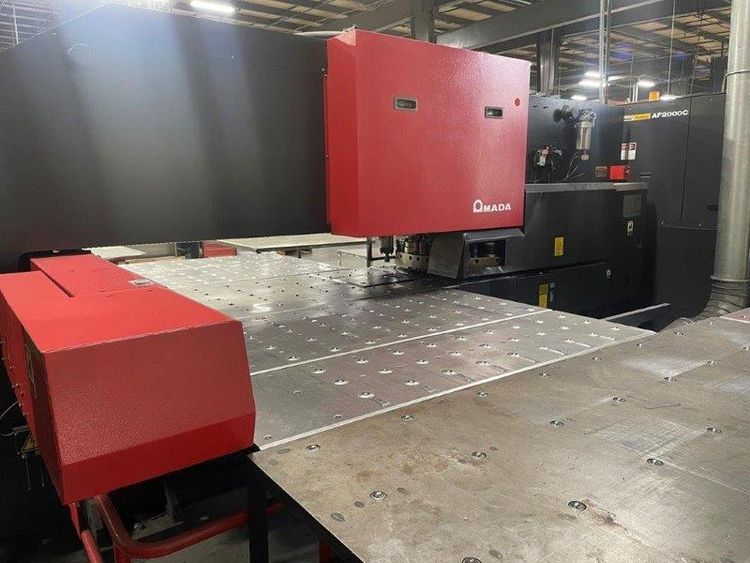

Amada AP3367V

SPECIFICATIONS
TRAVELS:
X-AXIS: 72"
Y-AXIS: 60"
CAPACITY: 33 TON
RESONATOR SIZE: 2000-WATT CO2 LASER
MAX. SHEET SIZE (WITH TABLE REPOSITIONING): 60"-Y X 144"-X
MAX. SHEET THICKNESS: 1/4"
MAX. SHEET WEIGHT: 220 LBS.
TURRET CONFIGURATION (THICK): 58 STATION W/ (2) AUTO-INDEXING STATIONS
MAX. FEED SPEED: 1,968 IPM
DIMENSIONS (APPROX): 232" X 166" X 98"
WEIGHT [APPROX]: 36,000 LBS.
EQUIPPED WITH

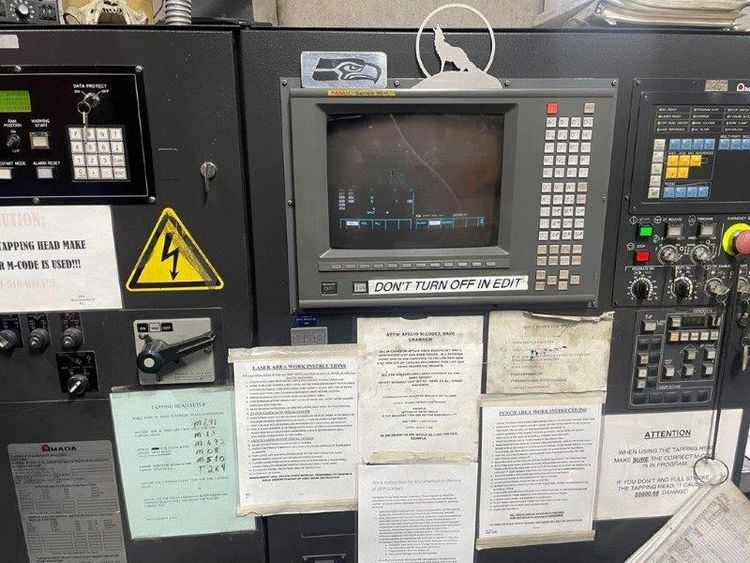

FANUC 16L CONTROL
2000 FANUC C2000 RESONATOR

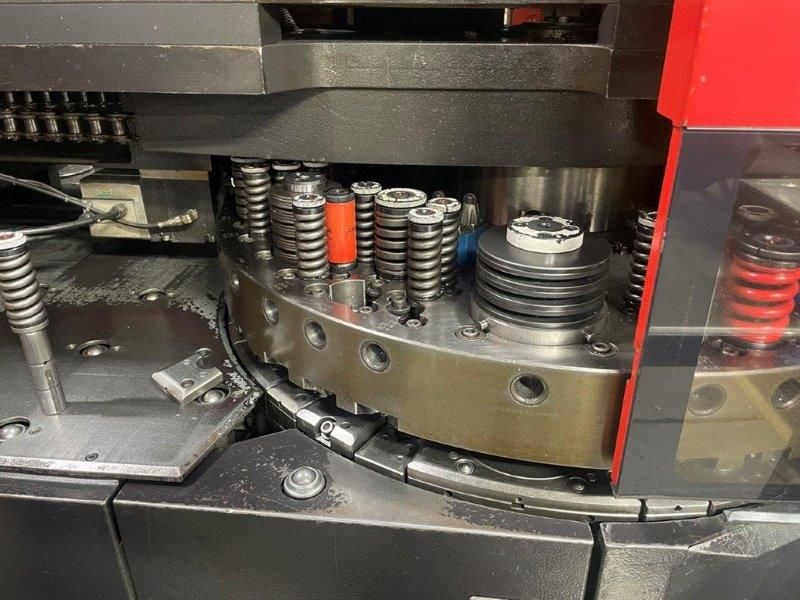

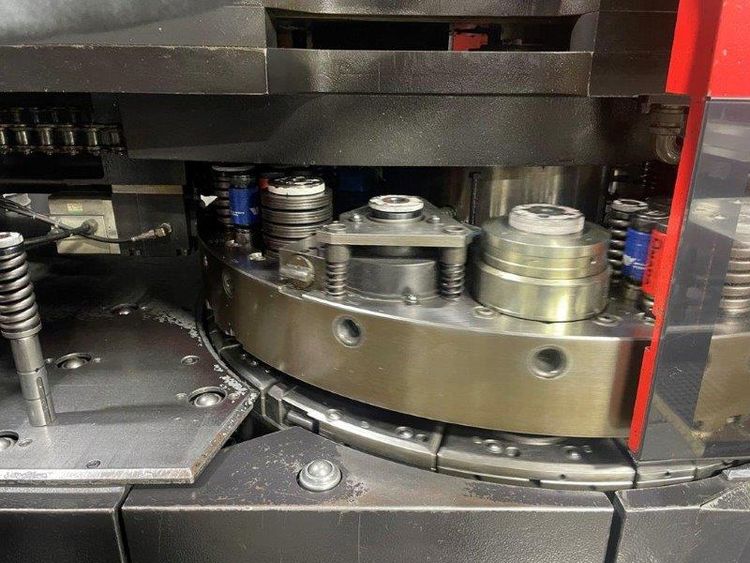

58 STATION THICK TURRET W/ (2) A/I

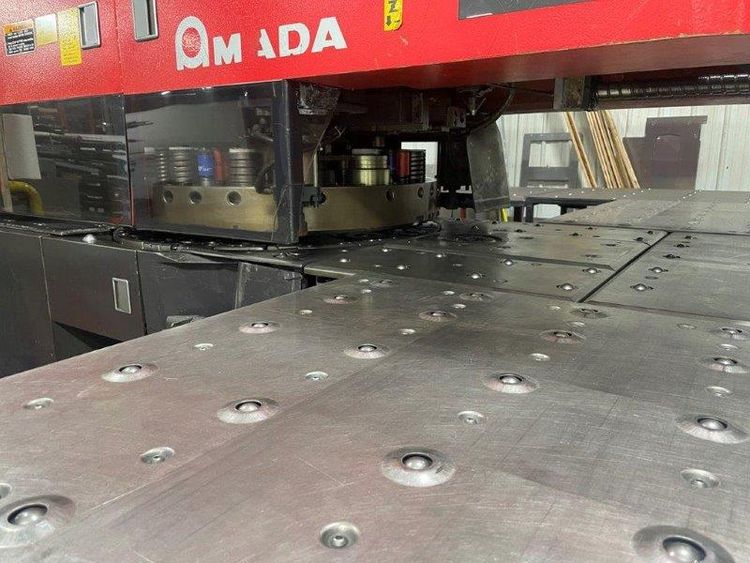

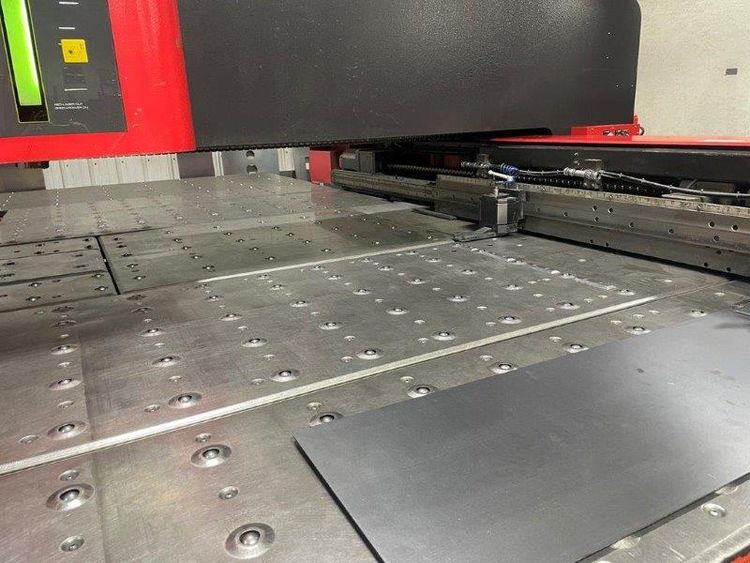

BALL TRANSFER TABLE

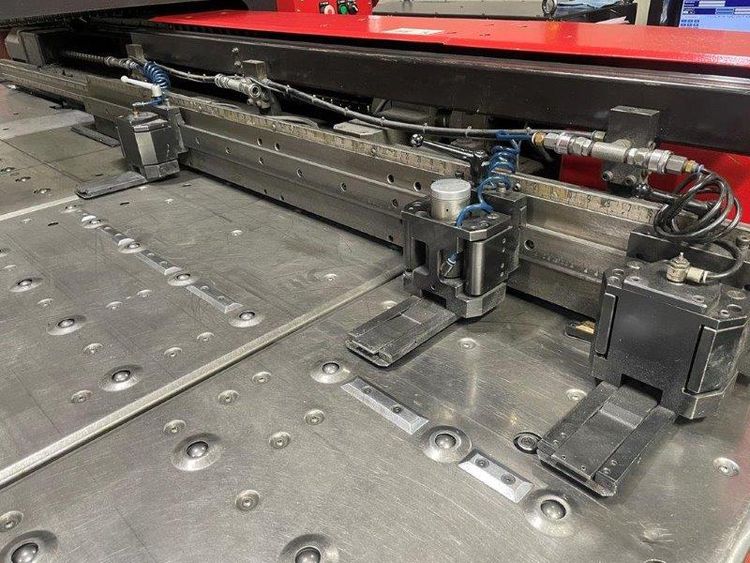

WORK CLAMPS
