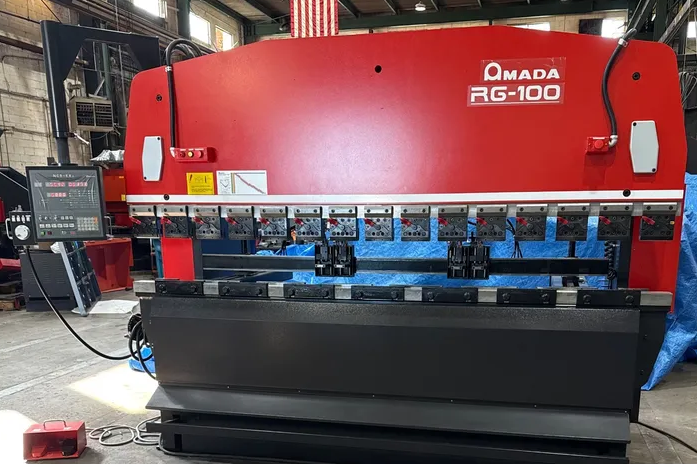

Amada RG 100 EX 110 tons

Press force: 110 tons
Maximum bending length: 120.28"
Maximum stroke length: 3.937"
Open height: 14.57"
Throat depth: 15.75"
Distance between side frames: 100.39"
Ram speed approach: 1.8"/sec
Ram speed bending: 0.33"/sec
Ram speed return: 1.38"/sec
Electrical requirements: 10 hp, 220/440/3/60
Machine weight: 14100

Machine Equipped With
NC9EX-II control
Designed for enhanced computer control
Centralized controls
Two-speed operation
Cylinder placement for ideal deflection curve
Roller guiding system
Tonnage limiter and gauge
Handwheel depth control
Sectionalized punch holders
Throttle action pedal
Treadle safety shield
Quick Change tool holders
3-axis CNC control
Electro pneumatic remote footswitch
