Anca FX5 Linear

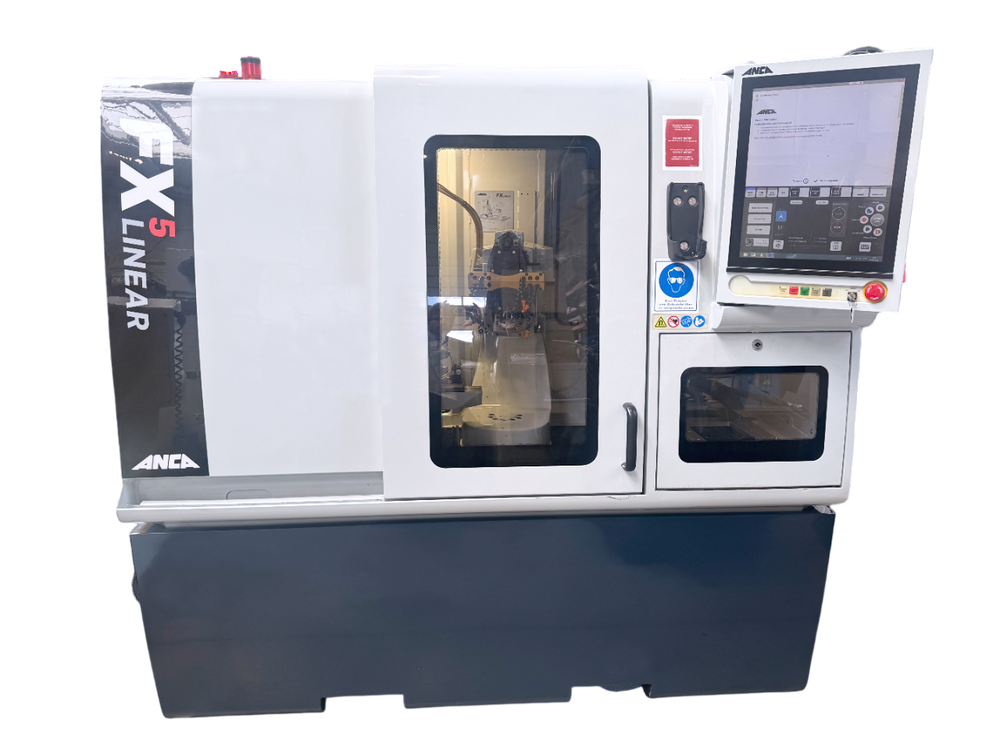

CNC Tool grinding machine ANCA FX 5 Linear



TECHNICAL CHARACTERISTICS:

Colour touch screen: 19 ["]
Stroke X axis: 384 [mm]
Resolution X axis: 0.0001 [mm]
Stroke Y axis: 317 [mm]
Resolution Y axis: 0.0001 [mm]
Stroke Z axis: 217 [mm]
Resolution Z axis: 0.0001 [mm]
Stroke A axis: 360 [°]
Stroke C axis: 230 [°]
Resolution C axis: 0.0001 [°]
Max. grinding lenght: 200 [mm]
Max. grinding diameter: 200 [mm]
Grinding spindle attachment: HSK-40F
Max. grinding wheel speed: 10000 [rpm]
Grinding spindle motor power: 12 [kW]
Max. diameter grinding wheel: 203 [mm]
Max. part weight in part holder headstock: 20 [Kg]
Supply voltage: 400 [V]
Total power required: 16 [kVA]
Machine dimensions: 1930 x 1800 x 1810 [mm]
Weight: 4500 [Kg]


EQUIPMENT INCLUDED:

x1 FANUC tool loading robot
x1 set of glass scale rules on the X and Y axes
x1 RENISHAW part probe



More information upon request.
