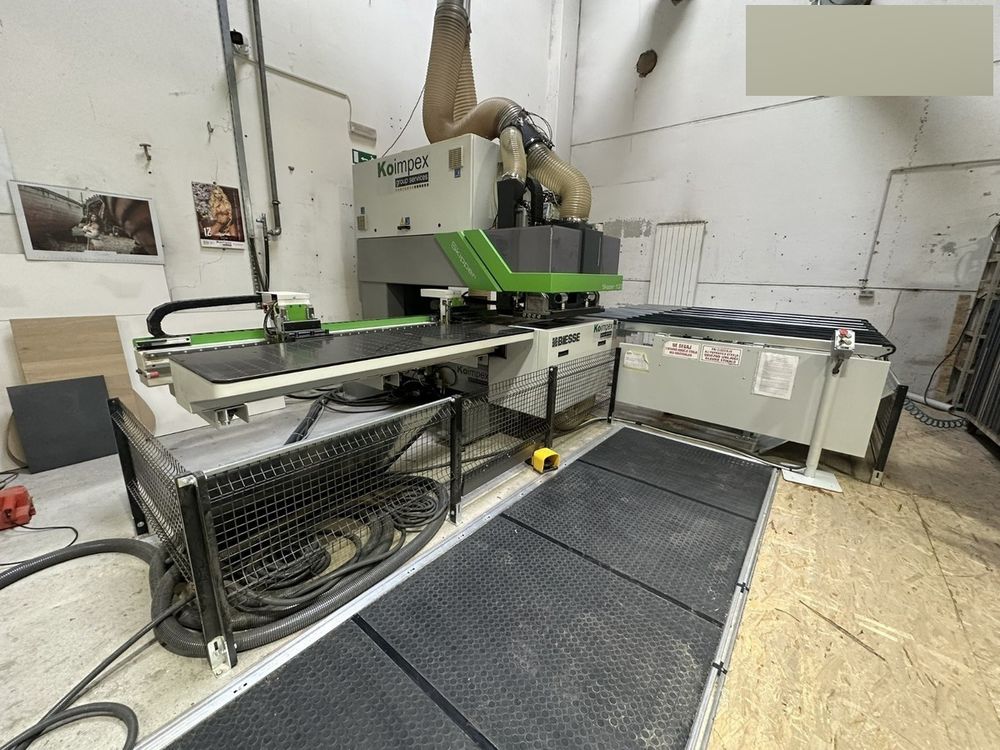

Biesse Skipper 100

Drilling machine a high-performance machine for drilling, milling, and grooving panel materials.
Technical specifications:
- Panel processing length: 90–3000 mm
- Panel thickness: 8–60 mm
- Vertical spindles (top + bottom): 29 + 29
- Horizontal spindles in X (top + bottom): 8 + 8
- Horizontal spindles in Y (top + bottom): 2 + 2
- Drilling unit: 3.5 kW (1 top + 1 bottom)
- Speed: 7000–18000 rpm

Workpiece dimensions:
- Length: 90–3000 mm
- Width: 70–1000 mm
- Thickness: 8–60 mm

Tool working area:
Along the length (X):
- Vertical holes: 0–3000 mm
- Horizontal holes in X: 0–3000 mm
- Horizontal holes in Y: 0–3000 mm
- Continuous milling (electrospindles): 0–2500 mm
- Partial milling (electrospindles): 0–3000 mm
- Grooves with saw blade in X direction: up to 3000 mm

Along the width (Y):
- Vertical holes in Y: 0–1000 mm
- Vertical holes “System 32”: 32–1000 mm
- Horizontal holes in X: 0–1000 mm
- Horizontal holes in Y: 90–1000 mm
- Milling: 0–950 mm
- Grooves with saw blade in X direction: 112–1000 mm

Machine description:

- Massive, monolithic construction made of electro-welded steel sheets, internally reinforced.
- 78 independent spindles (39 top + 39 bottom) – System 32 supported.
- Air-cushion surfaces for easy workpiece movement without damage.
- Upper pressure table ensures perfect grip even with slightly curved panels.
- X-Y panel movement with double grippers and linear guides.
- Centralized automatic lubrication system for guides and spindles.
- Operated via PC system, 15" LCD screen, graphic display of 6 workpiece sides.

Power supply:
- 380–415 V (±10%), 50/60 Hz

Safety:
- Protective mesh and doors with safety switch
- Front sensitive safety mats
- Soundproof cover with protective curtains and built-in dust extraction
- Complies with European Directive 98/37/CE
