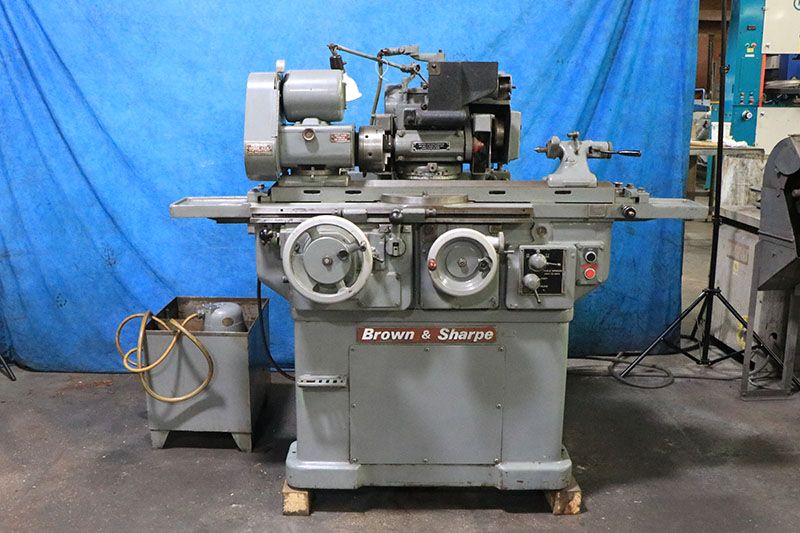

Brown & Sharpe 814U VALUEMASTER

Grinds work up to 8" diameter
Grinds length 14"
Distance between centers 24"
Grinding wheel size 10", 7" or 5" diameter
Grinding wheel speeds 2730, 3600, 5150 RPM
Wheelhead travel 8-3/8"
Wheelhead swivels left and right 110°
Swivel table angular setting left and right 90°
Fine screw adjustment for tapers up to 3" per ft
Table travel 22"
Travel per revolution of handwheel slow 1/4"
Travel per revolution of handwheel fast 6-1/4"
Headstock swivels left and right 100°
Spindle speeds 128 to 540 RPM
Approximate floor space 68" x 55" x 65"H
Approximate weight 2,900 lbs
Additional table swivel feature from center 90°
Double ended wheel spindle left and right
10" O.D. grinding wheel installed
Dual live/dead headstock spindle
Fine cross feed knob 0.0001" on work diameter
Anti-friction bearing wheelhead spindle
Table mounted wheel dresser
Coolant pump and piping
Wheelhead motor 1 HP 3/60/230-460 volt
Workhead motor 1/6 HP
Swing down I.D. grinding attachment with I.D. spindle
Power table traverse
Right hand and left hand wheel guards
Table mounted wheel dresser
Coolant pump and piping
3-jaw chuck
Face plate
Collet attachment
Collets
Centers
Live and dead workhead spindle set-ups
3-point steady rest
Cabinet
Work light
Wired for 230 volts 3/60 6 FLA
