Bruker Contour GT-X

[Used Item] Bruker 3D White Light Interferometry Microscope Contour GT-X

[Specifications]
• Year of Manufacture: 2012
• Measurement Principle: VSI Method (White Light Vertical Scanning Interferometry)

PSI Method (Phase Shift Interferometry)
VXI Method (Phase Shift + Vertical Scanning Interferometry)
• Vertical Resolution: (PSI) 0.1nmRa, (VXI) 0.5nm, (VSI) 1nm Ra
• Maximum Vertical Step Height: (PSI) 100nm, (VXI) 150um (VSI) 10mm
• Step measurement accuracy: 0.5% or less
(when measuring step height based on 8um / VSI)
• Light intensity adjustment: Automatic adjustment function
• Stage: XYZ automatic stage, 12-inch (300 x 300 mm) anodized aluminum stage
• Objective lens: 10x (for field of view search), 50x (measurement)
• Internal lens: 1.0x, 2.0x
• PC: Win7, SP1
• Power supply: AC100-120V, 3-pin connector, 600W
• Air supply: 5kgf/cm2 *Connection is one-touch connector 6mm
• Dimensions: Approx. W900 x D850 x H1620 mm
• Weight: Approx. 400 kg

【Equipment Status】
• Instruction manual included. * The PC and control software are in English.
* A small vacuum pump for stage suction is included.
* Please provide your own air (compressed air) source.
* The four bottom covers of the device are missing.

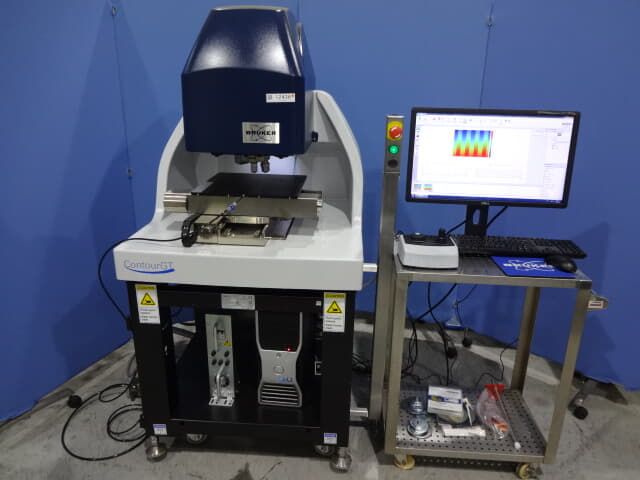

* The SUS desk on which the PC is mounted in the photo is not included.
* A monitor, console, mouse, and keyboard are included.
