Celli Gino Duplex board paper machine 2900 MM 400 - 1000 gsm 75 TPD

Ref : 2062182-2-CP
Condition : Used
Manufacturer : Celli Gino
Type : Duplex board paper machine
Width : 2900 MM
Gramages Range ( Gsm ) : 400 - 1000 gsm
Capacity : 75 TPD
Year(s) : -
Quantity : 1
Location : Seller or machines location:
EUROPE (Western and Northern)

No stock prep included- machine stopped in 2014

Max width at the pope: 2900 mm

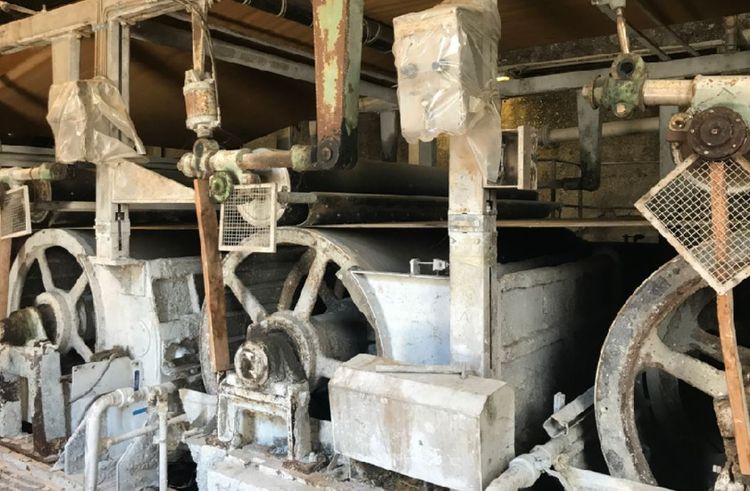

7 forming cylinders ( diam. 1250 mm)

Capacity: 75 tpd

Speed: 17 to 45 m/min

Grammage: 400 - 1000 gsm

Product: white/white, grey/grey, brown/grey, white/grey

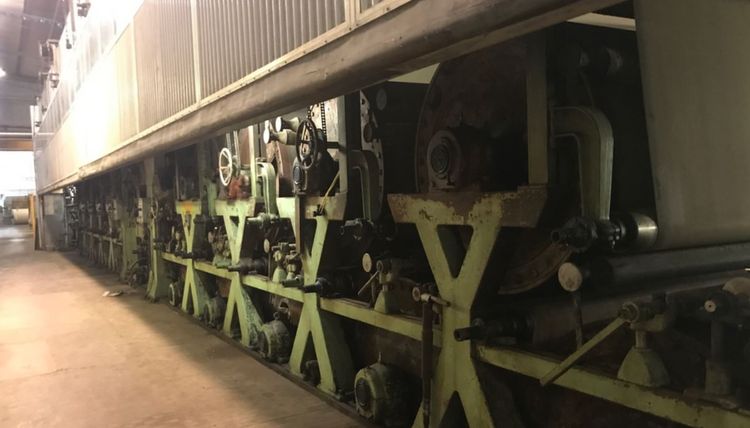

N° 26 dryer cylinders (diam. 1500 mm) MG cylinder (diam. 3500 mm)

Hood by Valmet

2 x metering bar coaters BMB, unused because there is no coating color preparation. Installed in 1991

N° 4 dryer cylinders after coater

QCS: first scanner before dryer section with Sr90 head for grammage and moisture, second scanner before pope, Kripton head

5/6 pope spools

Machine can work with pope winder or bypass the pope and cut directly sheets on a Pizzolato sheet cutter

Duplex, 6 slitters

Machine was stopped in 2014

The stock preparation is not included

The PM was built in 1962 and completely renovated in 1992, when the side parts of the wet section were replaced and Valmet totally rebuilt the hood of the dryer section and also 6 dryer cylinders were added. It worked until the end of 2014 when its production was shut down .

One of the best quality of this machine is that it can be operated just by a direct current 145 kwh electric motor, In reference to the forming section, the dryer section and the sheet cutter as well. It conveys the idea of how much energy can be saved with its production.
