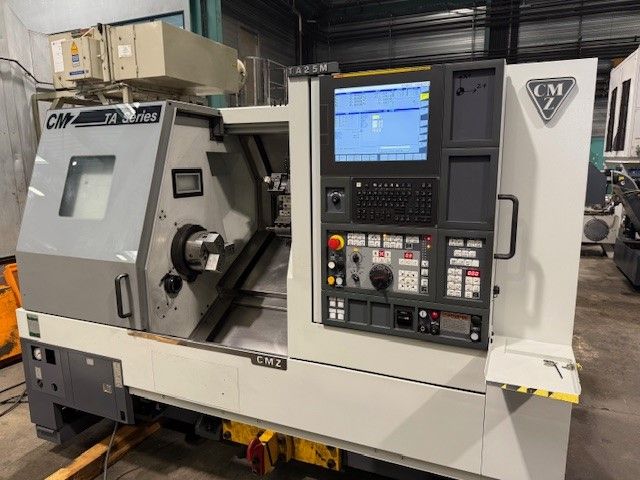

CMZ Fanuc with 15" touch screen and new iHMI 4000rpm TA25M 3 Axis

Ref : 2752322-3-AW

Condition : Used

Manufacturer : CMZ

Controller : Fanuc with 15" touch screen and new iHMI

Spindle Speed : 4000rpm

Model : TA25M

Nb Of Axis : 3 Axis

Year(s) : 2017

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

X axis travel: 310mm
Y axis travel: +70 / -50mm
Z axis travel: 640mm
Control: Fanuc with 15" touch screen and new iHMI
Maximum diameter over bed: 760mm
Maximum diameter over carriage: 600mm
Maximum turning diameter: 460mm
Distance between centers: 713mm
Spindle speed: 4000rpm
Spindle nose: ASA 6" A2
Spindle bore: 73mm
Turret: 12 stations
Live tooling speed: 12000rpm

Features / Equipment
Chip conveyor
CNC with 15" touch screen and new iHMI
Servo tailstock
Automatic door opening and closing
High pressure coolant pump (6 bar + 15 bar)
3 live tools
