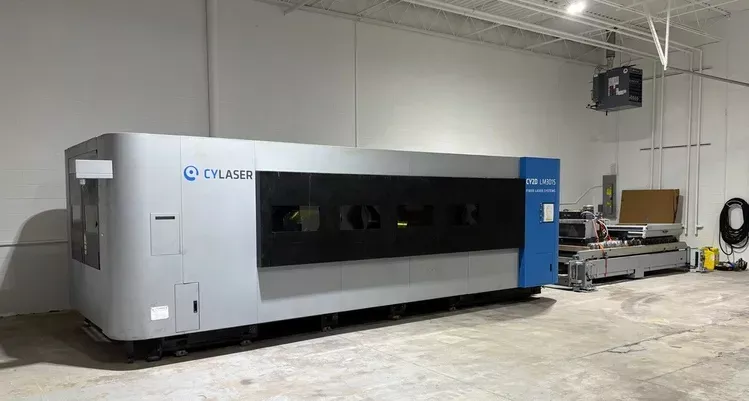

CYMS CY LASER CY2D LM3015 CNC CONTROL

X-axis travel: 3100 mm (122 in)
Y-axis travel: 1550 mm (61 in)
Z-axis travel: 120 mm (4.7 in)
Laser control: Fiber laser system
Automatic height adjustment
Automatic focus adjustment
Capacitive height sensing control
Automatic sheet finder and nesting alignment
Automatic focal point adjustment
Fly cut module
Servo piercing system
Automatic nozzle cleaning
Break-away torch system
Integrated cutting head cooling
High back reflection control
Etching system with 4 power levels
Maximum workpiece load per pallet: 700 kg (1540 lb)
Laser nominal power: 4.0 kW
Maximum spindle speed: 1200 RPM
Maximum axis acceleration: 4 g
Maximum positioning speed X/Y (parallel): 5906 in/min
Maximum positioning speed X/Y (simultaneous): 8268 in/min
Repeatability: 0.00098 in
Positioning accuracy (over 10 in): 0.0019 in
Carbon steel cutting capacity: 25.4 mm (1.00 in)
Stainless steel cutting capacity: 15 mm (0.59 in)
Aluminum cutting capacity: 15 mm (0.59 in)
Brass cutting capacity: 8 mm (0.31 in)
Overall length: 11299 mm (37 ft)
Overall width: 3000 mm (9 ft 10 in)
Overall height: 2199 mm (7 ft 2.6 in)
Machine weight: 11000 kg (24250 lb)
Total installed power: 30 kW
Power supply: 480 V / 60 Hz
Dust collector
Automatic nozzle changer
Compressed air assisted cutting system
Scrap conveyor preparation
Automatic load/unload system preparation
