DMG FANUC F31iB5 CELOS 3000 rpm MORI NTX 3000 /1500 2ND GEN 9 Axis

Turning diameter: 670 mm
Turning length: 1540 mm
Travel X: 495 mm
Travel Y: ±150 mm
Travel Z: 1562 (+164) mm
Rapid traverse X: 40 m/min
Rapid traverse Y: 40 m/min
Rapid traverse Z: 40 m/min
B axis: -30° / +210°
C axis spindle 1: 0.001°
C axis spindle 2: 0.001°
Control: FANUC F31iB5 CELOS
Linear scales on X axis
Linear scales on Y axis
Programmable steady rest
Chip conveyor
Tool setting system
Spindle load monitor
Air blow system
Internal air blow through tool
External air blow system
Automatic door
Ethernet interface
Program restart
Signal lamp
Manual pulse generator
Oil skimmer
Coolant system
Coolant through spindle: 70 bar
Coolant gun
Rotoclear window
Robot interface

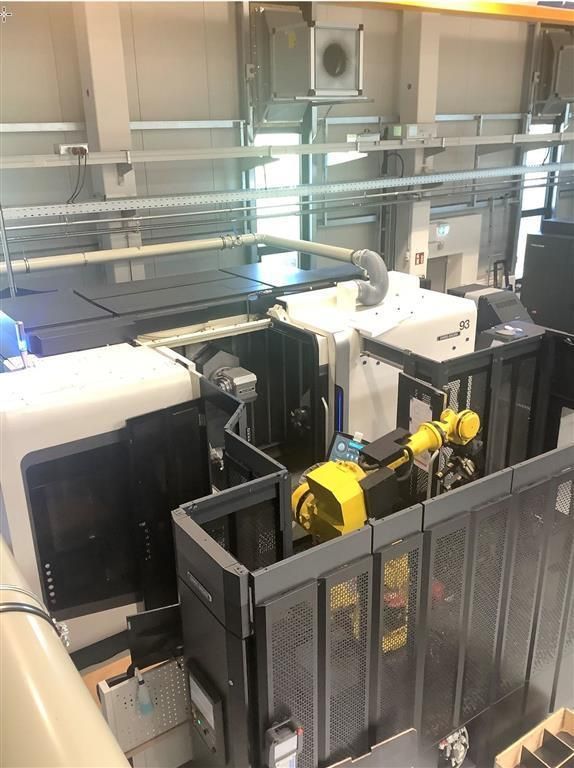

Robot system R-2000iC/165F
Measuring probe Renishaw OMP60
Tactile measuring sensor
Main spindle speed: 3000 rpm
Main spindle power: 36 / 30 / 25 kW
Main spindle bar capacity: 102 mm
Sub spindle speed: 4000 rpm
Sub spindle power: 26 / 22 / 15 kW
Sub spindle bar capacity: 80 mm
Milling spindle speed: 12000 rpm
Milling spindle power: 20.2 / 18.8 kW
Milling spindle torque: 120 / 44 Nm
Tool taper: Capto C6
Tool magazine: 76 positions
Tool change time: 1.25 sec
Turret milling spindle
Chuck spindle 1: 250 mm
Chuck spindle 2: 250 mm
Machine dimensions: 7800 x 3600 x 2900 mm
