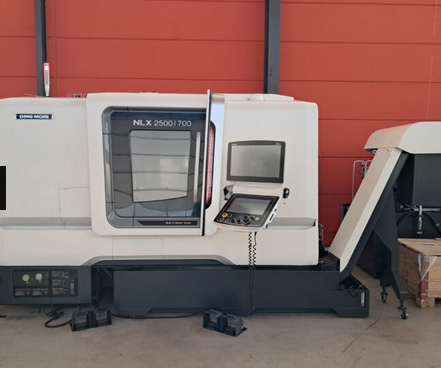

DMG Mitsubishi M730UM (CELOS – ERGOline Touch) 4000 rpm MORI NLX 2500 SY 700 3 Axis
EUROPE (Western and Northern)
Mitsubishi M730UM (CELOS – ERGOline Touch)
X-axis travel mm: 260
Y-axis travel mm: ±50
Z-axis travel mm: 795
Turning length mm: 705
Max. turning diameter mm: ø 366
Swing over bed mm: ø 920
Swing over cross-slide mm: 740
Bar work capacity mm: 80
Magazine places: 20
Tool holder: BMT40
Speed driven tools RPM: 10.000
Drive power driven tools kW: 5.5/4.9/4.2 (3 min/5 min/cont)
Rapid Feed Rate: 30
Speed spindle rpm: 4.000
Drive power spindle kW: 18.5/18.5/15 (25%ED/50%ED/cont)
Maximum torque Nm: 49
Speed counter spindle rpm: 5.000
Drive power counter spindle kW: 11/7.5 (25%ED/cont)
Maximum torque Nm: 22
Counter spindle travel mm: 734
Tank capacity liter: 366
Electronic Handwheel
Chip conveyor
Signal lamp
High pressure pump
Measuring probe
Paper band filter
Under power hours: 23.501
Cutting Time hours: 7.494
Potential nominal kVA: 48
Length mm: 5.330
Width mm: 4.100
Height mm: 2.395
Weight kg: 8.360
