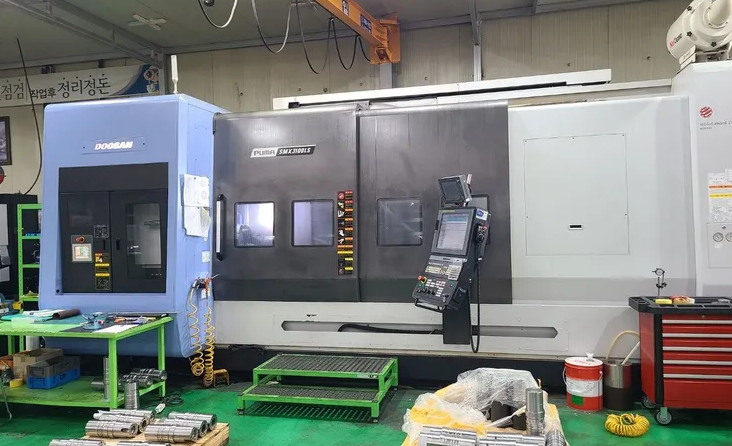

Doosan FANUC 31-B5 CNC 2,500 RPM PUMA SMX3100LS 6 Axis

X1-axis travel 24.8"
Z1-axis travel 101.8"
Y1-axis travel 11.8"
W-axis travel sub spindle 98.4"
C-axis indexing 1 360°
B-axis head indexing 0.0001
Control FANUC 31-B5 CNC
Scales for X/Y/Z
SMW steady rest 3.93" to 16.1"
Chip conveyor
X-axis ballscrew cooling
Absolute pulse coder
Automatic electric tool setter
Program storage 1280M
Embedded Ethernet
AICC II 600 blocks
8 pairs work coordinates
ATC operating panel with touch camera
Swing over bed 26"
Turning diameter 26"
Turning length 100"
Chuck size 1 15"
Bar capacity 1 4"
Spindle speeds 1 2,500 RPM
Chuck size 2 12"
Bar capacity 2 3.6"
Spindle speeds 2 4,000 RPM
B-axis milling spindle taper Capto C6
B-axis milling spindle speed 12,000 RPM
B-axis milling spindle horsepower 35 hp
ATC for milling spindle 80
Tool length 17.7"
Tool weight 26.5 lb
Rapid traverse rate X1 1889.8 ipm
Rapid traverse rate Z1 1181.1 ipm
Rapid traverse rate Y1 1417.3 ipm
Machine weight 45,195 lb
Dimensions 252" x 118.5" x 112.2"
