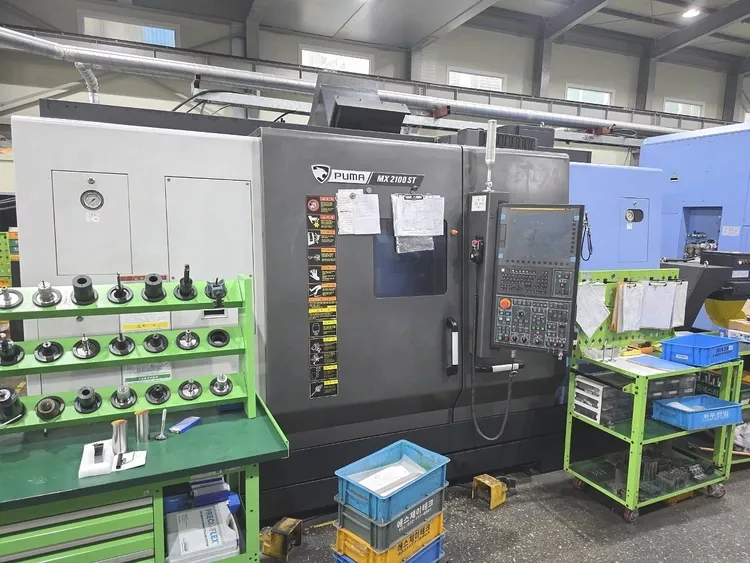

Doosan FANUC 31i-B Plus 5000 RPM DN SOLUTIONS PUMA MX 2100ST 5 Axis

X1-axis travel 22.2 in
X2-axis travel 7.4 in
Z1-axis travel 41.3 in
Z2-axis travel 41.3 in
Y1-axis travel 6.7 in

Rapid traverse X1-axis 1,417 in/min
Rapid traverse X2-axis 945 in/min
Rapid traverse Z1-axis 1,417 in/min
Rapid traverse Z2-axis 1,417 in/min
Rapid traverse Y1-axis 1,023 in/min

C-axis indexing main spindle
C-axis indexing sub spindle
B-axis head travel 41.3 in
CNC control FANUC 31i-B Plus
Tool presetter
Coolant through spindle
Chip conveyor
Swing over bed 29.5 in
Turning diameter 21.3 in
Turning length 40.2 in
Bar capacity main spindle 2.6 in
Bar capacity sub spindle 2.6 in

Main spindle speed 5,000 RPM
Main spindle motor power 29.5 hp
Main spindle nose A2-6
Main spindle bore 3 in

Sub spindle speed 5,000 RPM
Sub spindle motor power 29.5 hp
Sub spindle nose A2-6
Sub spindle bore 3 in

B-axis milling spindle speed 12,000 RPM
B-axis milling spindle motor power 24.8 hp
B-axis milling spindle taper Capto C6

Automatic tool changer for milling spindle 30 positions
Chuck size main spindle 8 in
Chuck size sub spindle 8 in
Turret tool positions 12 stations
Turret rotary tool speed 5,000 RPM

Maximum tool diameter 3.5 in
Maximum tool diameter with adjacent pockets free 4.7 in
Maximum tool length 11.8 in
Maximum tool weight 19.8 lb
Machine weight 26,456 lb
Machine dimensions 190.9 x 99.4 x 110.4 in
