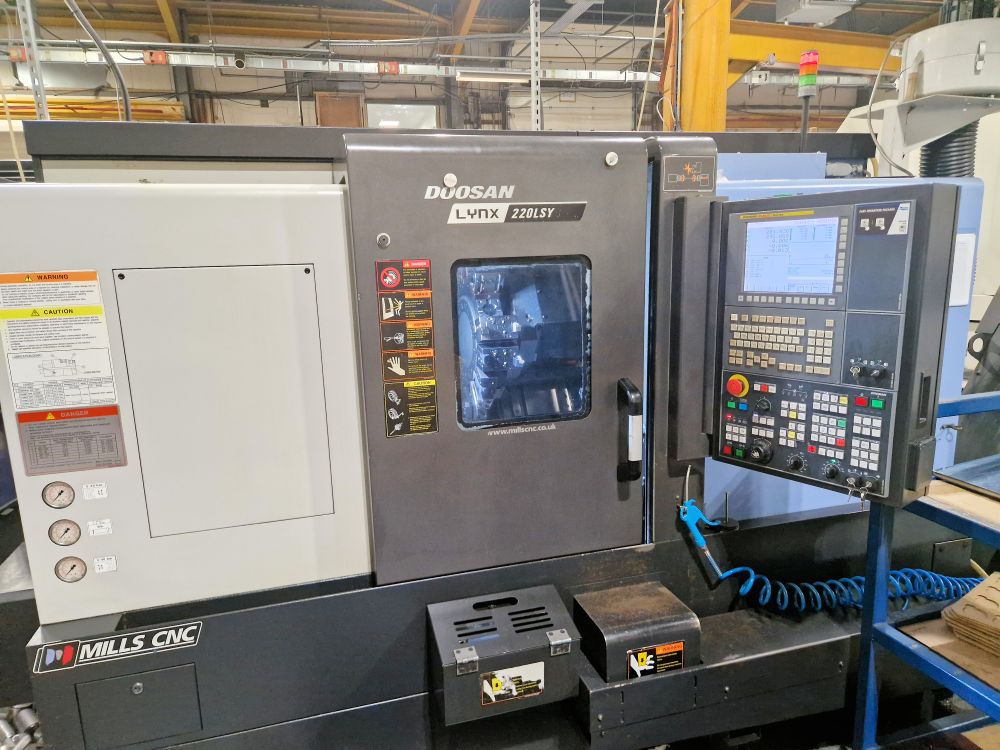

Doosan FANUC i Series 4500 rpm Lynx 220 LSYC 4 Axis

X axis Travel: 205mm
Y axis Travel: +/-52.5mm
Z axis Travel: 560mm
C axis: 0.001 degree
Sub Spindle C axis: 0.001 degree
Control: FANUC i Series
Bar Capacity: 65mm
Boring Bar Holder Diameter: 20mm
Spindle Motor Power: 15kW
Spindle Nose: A2-6
Spindle Speed: 4500 rpm
Sub Spindle Motor: 5.5kW
Sub Spindle Speed: 6000 rpm
Milling Motor Power: 3.7kW
Milling RPM: 6000 rpm
Rapid Feedrates: XYZ: 30 x 10 x 36 m/min
Chuck Size: 200mm
Tool Size: 20 x 20mm
Turret Positions: 16 Station
Machine Dimensions: 2880 x 1710 x 1920 mm
Machine Weight: 4150 kg
Maximum Cutting Diameter: 300mm
Maximum Cutting Length: 510mm
Standard Cutting Diameter: 210mm
Swing: 600mm
Swing over the Cross-slide: 400mm
Key Features: 3 Jaw Chuck
C axis & Milling
C axis on Sub Spindle
Coolant
Interlocked guards
Low Volt Light
Parts Catcher
Parts Conveyor
Sub Spindle
Swarf Conveyor
Tool setter
Tooling
Y-axis
