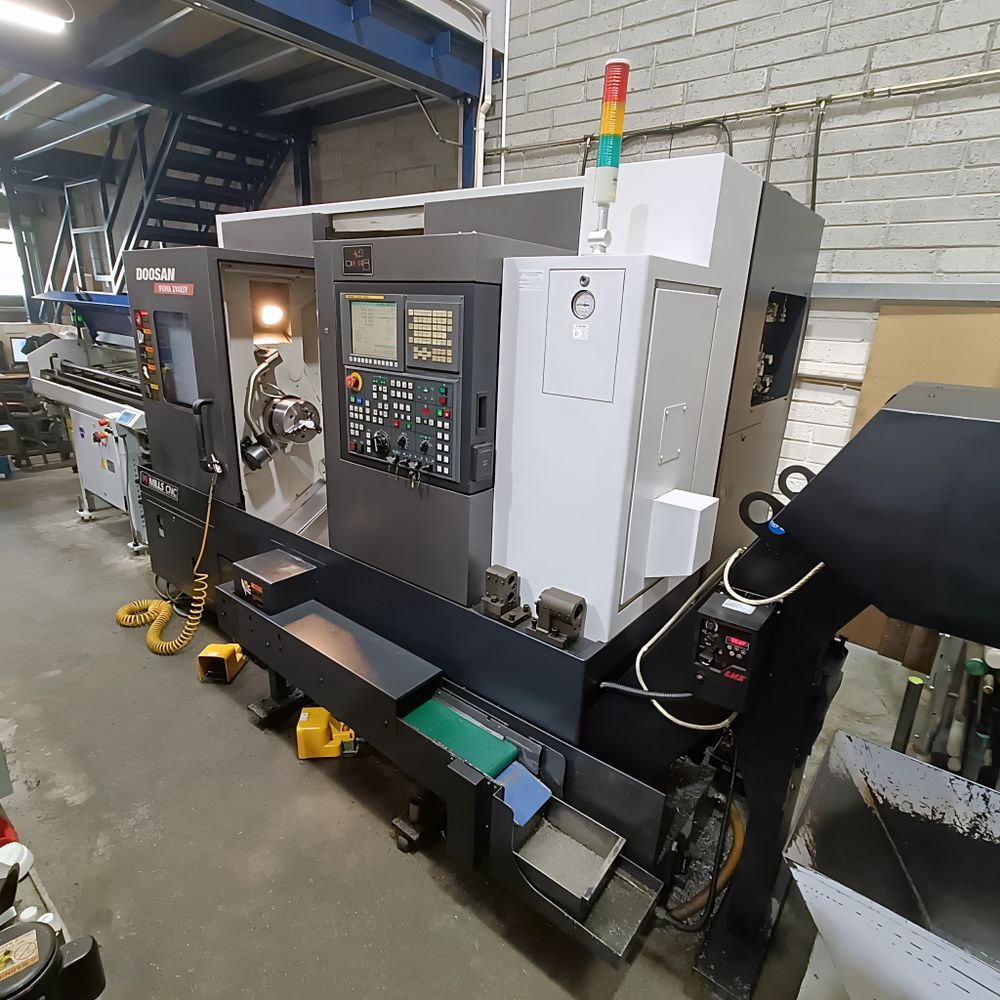

Doosan Fanuc I series 4500 rpm Puma 2100SY 4 Axis

X axis Travel: 260 mm
Y axis Travel: +/-51 mm
Z axis Travel: 590 mm
C axis: 0.001 degrees
Sub Spindle C axis: 0.001 degrees
Control: Fanuc I series
Bar Capacity: 65 mm
Spindle Bore: 76 mm
Spindle Motor Power: 18.5 kW
Spindle Nose: A2-6
Spindle Speed: 4500 rpm
Sub Spindle Motor: 7.5 kW
Sub Spindle Nose: A2-5
Sub Spindle Speed: 4500 rpm
Sub Spindle Stroke: 590 mm
Milling RPM: 5000 rpm
Rapid Feedrates: X,Z,Y,B: 30 x 30 x 30 x 10 m/min
Turret Positions: 12 Station
Swing: 780 mm
Swing over the Cross-slide: 630 mm
Maximum Cutting Diameter: 406 mm
Maximum Cutting Length: 520 mm
Machine Dimensions: 4310 x 1863 x 2163 mm
Machine Weight: 5900 kg
Key Features: 3 Jaw Chuck
C Axis (0.001degree) on Sub Spindle
C axis & Milling
Coolant
Interlocked guards
Low Volt Light
Magazine Barfeed
Manuals
Parts Catcher
Parts Conveyor
Sub Spindle
Swarf Conveyor
Tool setter
Tooling
Y-axis
