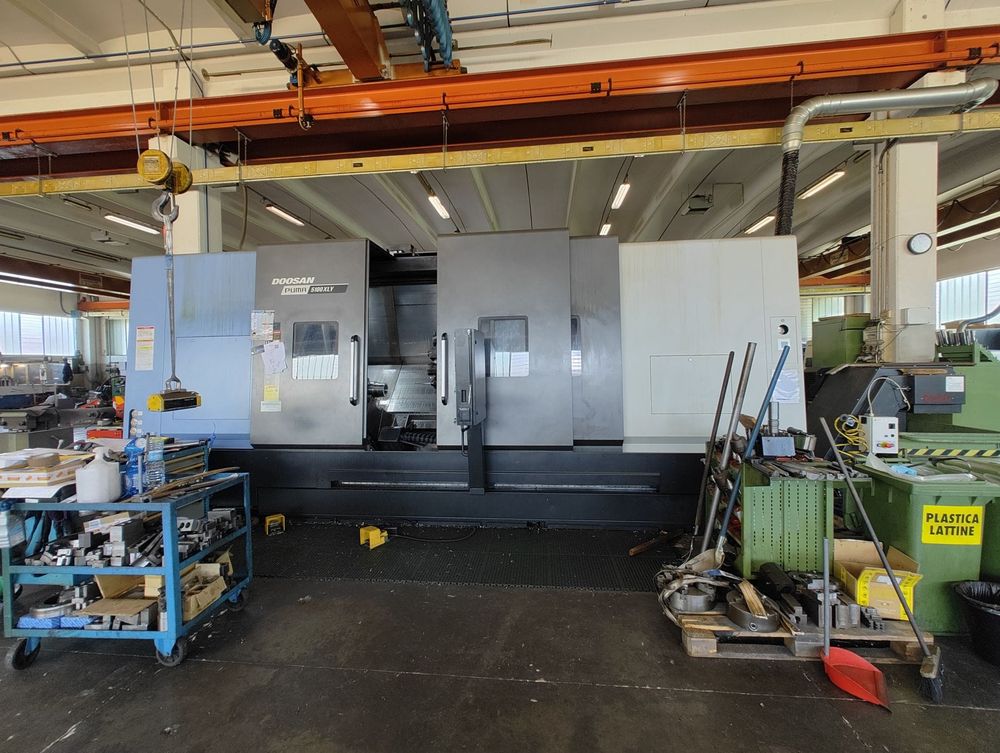

Doosan FANUC iPLUS iHMI 2000 rpm PUMA 5100XLY 3 Axis

X-axis travel: 355 mm
Y-axis travel: ±75 mm
Z-axis travel: 3150 mm
Rapid feedrates: X 20 m/min
Rapid feedrates: Y 10 m/min
Rapid feedrates: Z 18 m/min
C-axis resolution: 0.001 degree
Control: FANUC iPLUS iHMI
Bar capacity: 116.5 mm
Swing: 880 mm
Swing over cross-slide: 817 mm
Max. cutting diameter: 550 mm
Standard cutting diameter: 380 mm
Max. cutting length: 3070 mm
Spindle speed: 2000 rpm
Spindle motor power: 37/30 kW
Spindle nose: A2-11
Milling motor power: 23/15 kW
Milling speed: 4000 rpm
Chuck size: 400 mm
Tool size: 25 x 25 mm
Tooling configuration: BMT75P
Turret positions: 12
Machine dimensions: 8175 x 2632 x 2937 mm
Machine weight: 16000 kg

3-jaw chuck
Coolant system
Hydraulic power work steady
Interlocked guards
Low voltage light
Swarf conveyor
Tailstock
Tool setter
Tooling
Y-axis
Steady Morari SLZN-50315 capacity 50–315 mm
Tailstock body travel: 3070 mm
Tailstock quill diameter: 120 mm
Tailstock quill stroke: 120 mm
Tailstock taper: MT 6
Boring bar holder diameter: 60 mm
