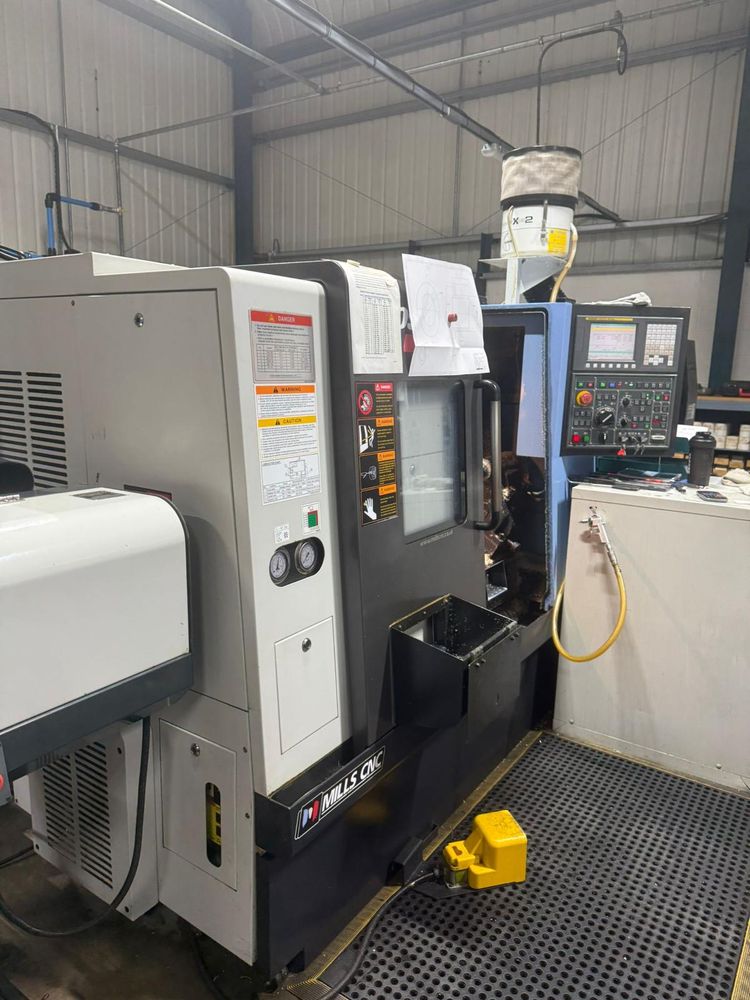

Doosan FANUC Oi 4000 rpm LYNX 220LC 2 Axis

Rapid traverse X-axis: 30 m/min
Rapid traverse Z-axis: 36 m/min
Control: FANUC Oi
Bar capacity: 65 mm
Swing over bed: 510 mm
Swing over cross slide: 290 mm
Maximum cutting diameter: 320 mm
Maximum cutting length: 525 mm
Spindle speed: 4000 rpm
Spindle motor power: 15 kW
Spindle nose: A2-6
Chuck size: 200 mm
Tool size: 25 x 25 mm
Turret positions: 12
Tailstock quill stroke: 80 mm
Tailstock taper: MT #4
Machine length: 2560 mm
Machine width: 1620 mm
Machine height: 1650 mm
Machine weight: 3100 kg

Features / Equipment
Collet chuck
Coolant system
Interlocked guards
Low-voltage light
Magazine bar feeder
Parts catcher
Swarf conveyor
Tailstock
Tool setter
