Elumatec KF 187 Copy milling machine for Alu Fabr. 12000 rpm
Ref :
2393479-3-GO
Condition :
Used
Manufacturer :
Elumatec
Model :
KF 187
Type :
Copy milling machine for Alu Fabr.
Spindle Speed :
12000 rpm
Year(s) :
1985
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)

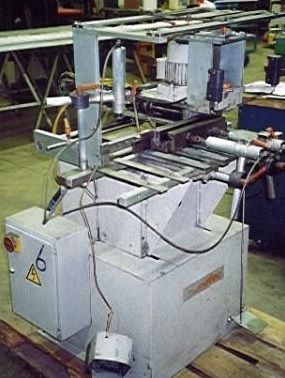

ELUMATEC KF 187
Year 1985
with large milling area
Milling range: 240 x 420 mm
Stroke: 240 mm
Clamping range of profiles: 250 x 250 mm
Milling speed: 12000 rpm.
Air consumption p. Working stroke: 12/32 l
Drive power: 740 watts
Air connection: 7 bar
Power connection: 380 V / 50 Hz
Weight approx: 260 kg
External dimensions approx. 1000x1000x1400 mm
With
- Spraying device
- pneumatic tensioning device
- large stencil and milling area
- pneumatic copy pin movement and milling depth adjustment
- turret depth stop for different cutting depths
used, in good condition
